The IR ME2 IR+ infrared assistive listening system is a flexible, professional solution designed to provide clear and secure audio in assistive listening environments. Built for reliability and ease of installation, this system expands infrared coverage by utilizing two emitters to improve signal distribution across larger or more complex spaces.
Designed for venues such as theaters, courtrooms, houses of worship, and conference facilities, the IR ME2 ensures consistent, high-quality audio delivery to compatible infrared receivers. The dual-emitter configuration enhances coverage performance, helping maintain intelligibility throughout the listening area.
The system includes a mounting bracket for streamlined installation and an ADA wall plaque to support accessibility compliance and inform users of available assistive listening services. With its simple yet powerful design, the IR ME2 IR+ system offers a dependable solution for professional-grade infrared audio distribution.
| IR M1 Modulator | |
|---|---|
| Power Supply | 110-240 VAC input, +48 VDC output (international desktop supply) |
| Power Consumption | 36W |
| Audio Inputs | 2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable) |
| Frequency Response | 40 Hz - 16 kHz (+1 dB, -3 dB) |
| Signal-to-Noise Ratio | 67 dB (typical) |
| Carrier Frequency | Selectable: 2.3/2.8 MHz or 3.3/3.8 MHz |
| Emitter Outputs | 4x RJ-45 (CAT5e) for power, control, and IR signal |
| Dimensions (H x W x D) | 1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm) |
| Weight | 5.2 lbs (2.4 kg) |

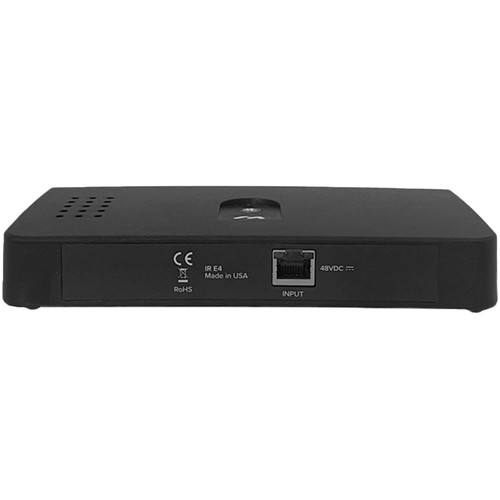

| IR E4 Emitter | |
| Power | 48 VDC supplied by IR M1 via CAT 5e cable |
| Coverage Area | Up to 18,000 (1670 m) square feet in single channel mode |
| Connectivity | +48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1 |
| Operating Requirements | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Color | Black |
| Dimensions (H x W x D) | 1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm) |
| Weight | 0.8 lbs (0.36 kg) |
