Williams AV IR SY21 D IR Plus Large-Area Infrared Assistive Listening System

Williams AV IR SY21 D IR+ Large-Area Infrared Assistive Listening System with Dante, IR M1 D Modulator, 2 IR E4 Emitters, A4 Array, and 4 Receivers

By Williams AV

Williams AV IR SY21 D IR+ Large-Area Infrared Assistive Listening System with Dante, IR M1 D Modulator, 2 IR E4 Emitters, A4 Array, and 4 Receivers

Name: Williams AV IR SY21 D IR+ Large-Area Infrared Assistive Listening System with Dante, IR M1 D Modulator, 2 IR E4 Emitters, A4 Array, and 4 Receivers
Brand: Williams AV
SKU: WILLIAMS-IR SY21 D
Price: 6213 USD
Availability: InStock

Write a Review

Part #:

IR SY21 D

Model #:

IR SY21 D

Current Stock:

Availability: 2+ Week Lead Time

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Williams AV IR SY12 D IR+ complete infrared assistive listening system with Dante includes an IR M1 D modulator, two IR E4 emitters, and five IR RX20 receivers. It delivers secure, high-quality audio for assistive listening in professional and ADA-compliant environments.

Description

Williams AV IR SY21 D IR Plus Large-Area Infrared Assistive Listening System with Dante

The IR SY21 D IR+ large-area infrared assistive listening system with Dante is a professional, commercial-grade solution designed to deliver secure, high-quality audio across large spaces. Utilizing infrared transmission, it ensures private audio delivery that remains confined within the room, making it ideal for environments that require confidentiality and clarity.

At the center of the system is the IR M1 D infrared modulator, featuring a Dante input and built-in Wi-Fi support, which enables seamless integration with modern networked audio systems. The system includes IR E4 emitters and an IR A4 array to provide expansive and consistent coverage for large venues.

This complete package includes four WIR RX22-4N bodypack receivers, dual-bay chargers, earphones, and an ADA wall plaque for compliance. Designed for reliability and ease of deployment, the IR SY21 D is ideal for theaters, auditoriums, courtrooms, and houses of worship requiring large-area assistive listening solutions.

Features

Large-area infrared assistive listening system with Dante support
Includes IR M1 D modulator with Dante input and Wi-Fi capability
IR E4 emitters and IR A4 array for wide coverage
Secure IR transmission prevents signal leakage outside the room
Includes 4 WIR RX22-4N bodypack receivers
Dual-bay chargers and earphones are included for user convenience
ADA wall plaque included for accessibility compliance
Designed for commercial and large venue installations
Ideal for theaters, auditoriums, courtrooms, and worship spaces
Reliable, high-quality audio delivery for assistive listening needs

Specifications

IR M1 D Modulator
Power Supply	110-240 VAC input, +48 VDC output (international desktop supply)
Power Consumption	36W
Audio Inputs	2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable)
Frequency Response	40 Hz - 16 kHz (+1 dB, -3 dB)
Dante Support	Integrated Dante audio networking
Signal-to-Noise Ratio	67 dB (typical)
Dimensions (H x W x D)	1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm)
Weight	5.2 lbs (2.4 kg)

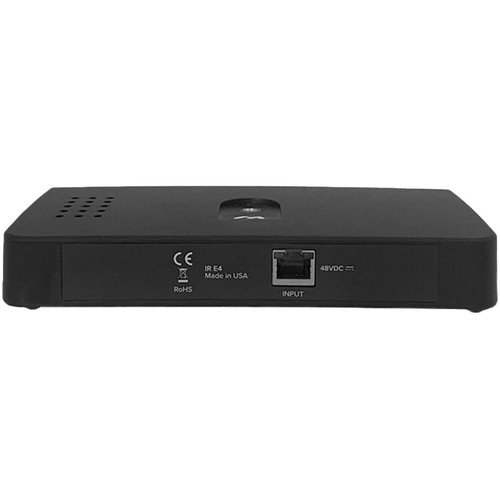

IR E4 Emitter
Power	48 VDC supplied by IR M1 via CAT 5e cable
Coverage Area	Up to 18,000 (1670 m) square feet in single channel mode
Connectivity	+48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1
Operating Requirements	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Dimensions (H x W x D)	1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm)
Weight	0.8 lbs (0.36 kg)

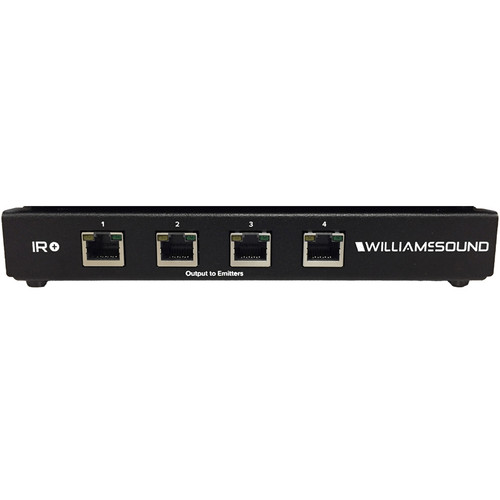

IR A4
Power	48 VDC, 0.75A
Connectivity	+48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via CAT5e cable(s) inserted into an RJ-45 jack from the IR M1 and out to the IR E4(s)
Heat Dissipation	1W
Max Cable Length	328 feet (100 m)
Plenum Rating	Not rated for use in plenum spaces and will need to be installed in a plenum box for use in such areas
Dimensions (H x W x D)	1.1" (28 mm) x 7.6" (193 mm) x 6.6" (168 mm)
Weight	2.4 lbs (1.09 kg)

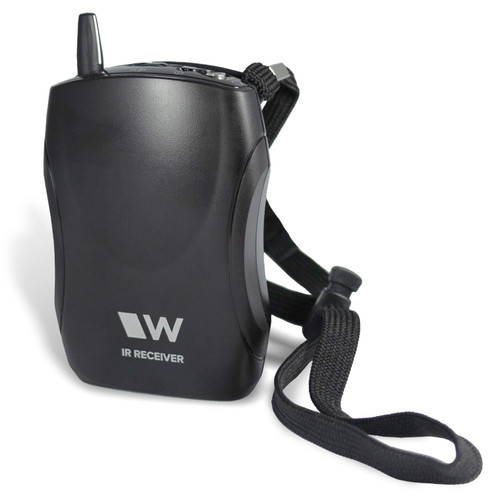

WIR RX22-4N
Battery Type	2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Drain	25 mA, nominal
Frequency Response	25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion	Less than 1%, electrical response
Controls	ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
Dimensions (H x W x L)	1.2" (30.4 mm) x 3.86" (72.4 mm) x 4.1" (104.1 mm)
Weight	0.28 lbs (0.13 kg)

DOCUMENTS

System Includes

(1) IR M1 D Rack Mounter Infrared Modulator with Dante
(2) IR E4 Wall-Mounted IR Emitters
(1) IR A4 Distributed Emitter Array
(4) WIR RX22-4N Bodypack IR Receivers
(4) EAR 022 Surround Earphones
(2) BAT KT6 2-Bay Body-Pack Charger Kit
(1) IDP 008 ADA Signage
