Williams Sound PLA CL SYS 1 Counter Loop Kit

Home /
Williams Sound PLA CL SYS 1 Counter Loop Kit (Discontinued)

Description

Details

Counter Loop Kit. This is a complete kit for applications where there is no amplified audio system present. A 12” Nylon Fabric Mat (containing a two-turn loop with resistor) is installed under any non-metal counter, and produces about a 36” x 36” magnetic field for T-Coil equipped hearing aid users.

Applications include: Kiosks, Pharmacies, Bank Teller Windows, Ticket Windows, or any application where close-range hearing assistance (via hearing aid T-Coil) is desired. Can also be used as a portable system for meetings as a chair loop or other creative applications.

Features

Features

Ideal for counter top hearing assistance applications where hearing aid t-coil can be used
Can be used as a chair loop for meetings
Digital Audio TOSlink/Coaxial
2 x Microphone inputs. 3.5 mm mono jack plug. DC powered 5 V for Electret Microphones
2 x Aux In Left/Right Line Inputs. Phono/RCA jacks. For direct connection to a TV sound output or other sound source via SCART or other suitable jack

Specification

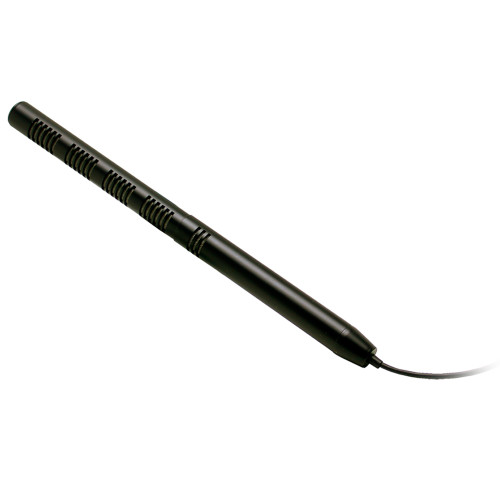

Mic 027
Phantom Powered	No
Impedance	1.4 kiloohms
Operating Voltage	1.5 - 10 VDC
Frequency Response	20 Hz - 18 kHz
Dynamic Range	99 dB
Signal-to-Noise Ratio	74 dB
Pick-Up Pattern	Uni-directional
Element	Electret Condenser
Max Input Sound Level	119 dB SPL
Sensitivity	-56 dB ± 3 dB
Cord Length	49”
PLA 240
Power Input	12-24 VDC, 2A
Power Output	18V, 1.5A
Controls	Rotary Volume Control Rotary Tone Control On/Off Power Switch Source Selector Switches Priority Switch
Dimensions (H x W x D)	1.625'' (41.27 mm) x 7'' (177.80 mm) x 6'' (152.40 mm)
Weight	Shipping weight (boxed with accessories): 4.3 lb ( 1.95 kg) Unit (amplifier) weight: 1.6 lb ( .72 kg)

System Includes
