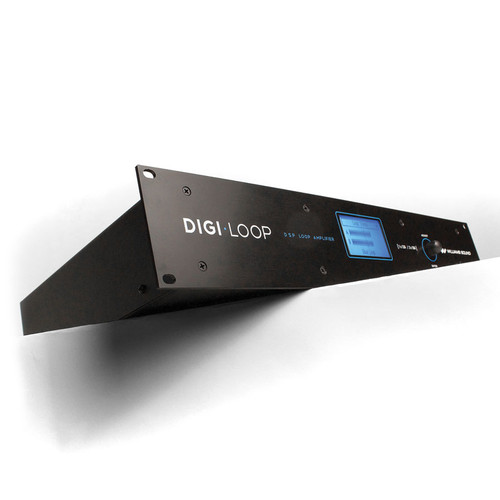

Williams Sound PLA DL210NET-D Digi-Loop DSP Loop Amplifier (Discontinued)

Williams Sound PLA DL210NET-D Digi-Loop DSP Loop Amplifier (Discontinued)

Name: Williams Sound PLA DL210NET-D Digi-Loop DSP Loop Amplifier (Discontinued)
Brand: Williams AV
SKU: WILLIAMS-PLA DL 210 NET D
Price: 3554 USD
Availability: OutOfStock

Write a Review

Part #:

PLA DL 210 NET D

Model #:

PLA DL 210 NET D

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The Williams Sound PLA DL210NET-D Digi-Loop DSP Loop Amplifier now features Dante inputs and cutting-edge connectivity via Crestron. This next-generation Digi-Loop continues to offer DSP audio processing with flexible, powerful software control of mixing, equalization, compression, loop phase shift and more. Its potent Class D, pulse-width amplifiers maximize efficiency, and reduce size and weight. Digi-Loop’s dual-amplifier design offers impressive flexibility, with the option of a single 12A output for large perimeter loops, or dual 10A outputs for phase loop arrays. With its ability to power a loop and a speaker, Digi-Loop shines as a complete room solution.

Features

Dante inputs
Creston control
DSP Audio Processing
Digital Inputs - AES3/EBU and Dante
LCD Screen with Metering
Ethernet or RS-232 control
USB for firmware updates
Mixing, Equalization, Compression, Phase, and Frequency-Shaping
Power-save mode
Master Gain Control
High output current: 12/10 amps
Active protection against short circuits
XLR input configurable as microphone input or line-input, balanced or unbalanced.
Standard 2RU, 19” rack enclosure
Magnetic signal couples directly to hearing aids equipped with telecoils (T-coils)
Can be used with optional loop receivers
Suitable for set-up of high or low-overspill systems, or interleaved arrays
Meets ADA / ADAAG guidelines
Meets IEC Specification 60118-4

Specifications

Fan Cooling	Variable Speed, Temperature Controlled
Power	100-240 VAC, 50/60 Hz, 500 Watt
Heat Output	Sleep state: 83 BTU, Idle State: 112 BTU Driving two loops @9A each: 286 BTU
Digital Input	(1x XLR); AES or EBU; 44.1kHz/48kHz, (1x RJ-45); Dante; 44.1kHz/48kHz
Analog Line Inputs	(1x RCA, L+R); -10dBV, 10kΩ input impedance
Mic/Line Inputs	balanced or unbalanced, Input impedance: 1.5kΩ Mic, 10kΩ Line.,Configurable/accepts Mic, Line +4dBu, Line +8dBu, or Line -10dBV
70-100v Input	(1x Phoenix Terminal Block); speaker-level input, for distributed audio systems
Line Outputs	(2x Phoenix Terminal Block); loop-through of Mic/Line inputs 1 & 2. +4dBu. Balanced or Unbalanced
Loop Outputs	(2x Phoenix Terminal Block)
Required Loop Resistance	0.5Ω to 1.5Ω (DC)
Output Current (Loop)	One Loop, Output A or B: 12A rms, Two Loops, Outputs A and B: 10A rms each
Output Power (Speaker)	50 Watts X 1 Channel @ 4 Ω (35 Watts @ 8 Ω). Class D
Loop Frequency Response	100Hz to 10kHz @400mA (Output A or B)
Speaker Frequency Response	20Hz - 20kHz (Output A)
Speaker Dynamic Range	>90 dB; A-weighted, typical
Speaker THD+N	0.07%; 50 watts into 4Ω @ 20-20kHz
Loop THD
Front Controls	Front LCD display menu access/adjustment via control dial
Remote Control/Configuration	Ethernet, USB, RS-232. Application “PC Mixer App” supports all 3 protocols
Ethernet	Standard RJ-45 jack
Dante	Standard RJ-45 jack
RS-232	Standard DB-9 COM port connector
USB	Standard-B jack. USB 1.1, 2.0 or 3.0 supported
Warranty	2 years
Approvals	CE, UL, ULC, FCC, Industry Canada, RoHS, WEEE, CB scheme
Dimensions (H x W x D)	3.5" (90 mm) x 19" (482.6 mm) x 12" (304.8 mm)
Weight	14.3 lbs (6.5 kg)
