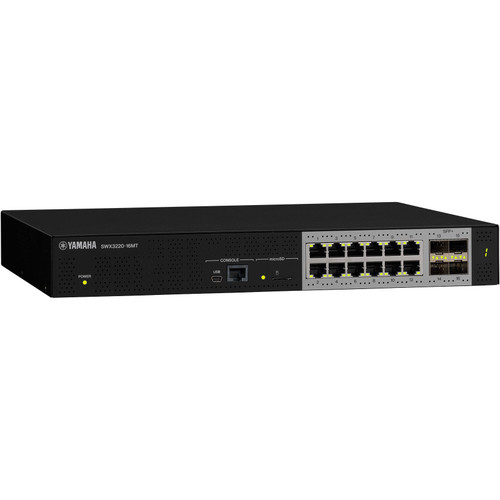

Yamaha SWX3220-16MT Standard L3 Multi-Gigabit Network Switch - 16 Ports

Description

Details

Yamaha SWX3220-16MT 16-Port Multi-Gigabit Standard Network Switch

The SWX3220-16MT is a standard L3 multi-gigabit network switch designed for high-capacity enterprise and industrial networks. With 12 multi-gigabit ports supporting 100M/1G/2.5G/5G/10G speeds and 4 SFP+ slots, it provides flexible and high-speed connectivity for various network devices, enabling reliable backbone and segmented network deployment.

Equipped with a built-in RADIUS server, the SWX3220-16MT allows advanced network security management, ensuring controlled access and protection across your network. The switch also supports PTPv2 Transparent Clock (TC), ideal for applications requiring precise timing and low-latency transmission, such as professional audio, video, and industrial automation systems.

Supported by Yamaha LAN Monitor, this switch provides centralized network monitoring and management, simplifying operation and maintenance. Its robust performance, scalability, and advanced features make it an ideal choice for businesses and installations demanding speed, reliability, and precise network control.

Features

Features

16-port Standard L3 Multi-Gigabit network switch
12 multi-gigabit ports (100M/1G/2.5G/5G/10G) + 4 SFP+ slots
Built-in RADIUS server for advanced network security
Supports PTPv2 Transparent Clock (TC) for precise timing
Compatible with the Yamaha LAN Monitor for centralized network management
Ideal for enterprise, industrial, and professional AV networks
Flexible port configuration for backbone and segmented networks
Reliable, high-speed, and scalable network switch

Specification

LAN Ports	Standard: IEEE 802.3 (100BASE-TX/1000BASE-T/2.5GBASE-T/5GBASE-T/10GBASE-T) Number of Ports: 12 Communication Mode: Auto negotiation Connector Type: RJ-45 Polarity: Automatic detection of straight/cross, or fixed at straight
SFP+ Ports	Standard: IEEE 802.3z (1000BASE-SX/1000BASE-LX), IEEE 802.3ae (10GBASE-SR/10GBASE-LR) Number of Ports: 4
Console Ports	Standard: RS-232C, USB 2.0 Connector Type: RJ-45, USB mini-B (5-pin) Data Transmission Speed: 9600 (initial value)/19200/38400/57600/115200 bit/s
Performance	Switching Bandwidth: 320 Gbit/s Forwarding Rate: 238.10 Mpps Flame Buffer: 3 MB
microSD Slot	Standard: microSD/microSDHC File System: FAT/FAT32
Indicators	POWER, microSD, LINK/ACT, SPEED, Stack ID
MAC Address	Indicated in product label on top panel of unit
Operating Environment	Ambient temperature: 0 - 50 °C, Ambient humidity: 15 - 80 % (non-condensing)
Storage Environment	Ambient temperature: -20-60˚C, Ambient humidity 10–90% (non-condensing)
Power Supply Voltage, Frequency	AC100 - 240V, 50/60 Hz
Maximum Power Consumption	84W
Accessories	Owner's manual, power cord, power cord clamp, legs, 19-inch rack mount hardware and screws, Wall mount hardware and screws
Dimensions (H x W x D)	1.73" (44 mm) x 13" (330 mm) x 9.8" (250 mm)
Weight	6 lbs (2.7 kg)
