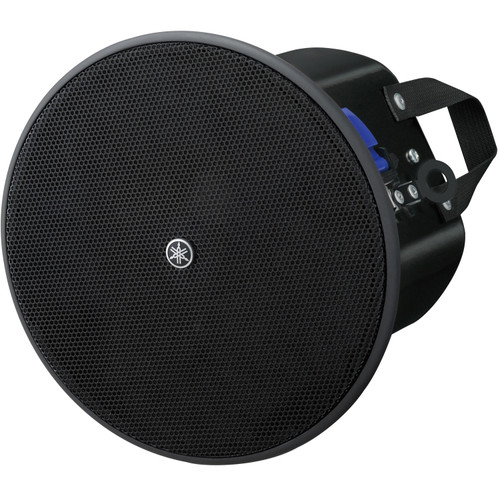

Yamaha VXC4 4" Full-Range Ceiling Speakers with 130° Coverage - Black Pair

Yamaha VXC4 4-Inch Commercial In-Ceiling Loudspeakers

The VXC4 4" in-ceiling loudspeakers deliver professional-grade sound in a sleek black design, perfect for commercial and architectural installations. Engineered for clear voice reproduction and rich music playback, each speaker features a 4-inch full-range bass-reflex driver with optimized transducers for high-efficiency performance. The internal transformer allows flexible high-impedance (70V/100V) or low-impedance (8Ω) operation, easily selectable via the tap switch on the baffle.

Designed for safety, portability, and ease of installation, the VXC4 includes an Anti-Drop tab for temporary ceiling mounting, flexible carrying bands for moving multiple units, and an eyelet for secondary safety wire use. Complete with O-rings, tile rails, and a paintable black steel grille, these speakers integrate seamlessly into any interior space, including offices, classrooms, retail locations, restaurants, and houses of worship.

With a wide 130° conical coverage pattern, smooth frequency response from 80 Hz to 20 kHz, and an overload protection circuit to safeguard components, the Yamaha VXC4 combines reliability, compact design, and high-quality sound in a professional black finish. These in-ceiling speakers are ideal for background music, paging, and mixed audio applications in a wide range of commercial environments.

• Pair of black 4" commercial in-ceiling loudspeakers
• 120W peak power handling, compatible with 70V/100V or 8Ω systems
• Newly optimized transducer for rich music and clear speech
• Bass-reflex design for tight, balanced low frequencies
• Wide 130° conical coverage for even sound distribution
• Anti-Drop tab for temporary ceiling mounting and improved safety
• Includes O-rings, tile rails, and an eyelet for secondary safety wire
• Flexible carrying band for easy transport of multiple units
• Overload protection circuit to safeguard components
• Paintable black steel grille blends seamlessly into interiors

Data Sheet

Manual

• (2) VXC4 Black Speakers
• (2) Black Grilles
• (2) O-rings
• (2) Tile Rails
• (4) Screws
• (1) Cutout Template
• Owner's Manual
