The Yamaha VXC5F is a 4.5" full-range low-profile ceiling speaker pair in black with 130° coverage, engineered for superior BGM performance, flexible impedance options, and easy installation with paintable grilles and built-in carrying bands.

Description

Yamaha VXC5F 4.5-Inch Full-Range Low-Profile Black Ceiling Speakers

The VXC5F 4.5" ceiling speakers deliver exceptional background music (BGM) reproduction in a sleek, low-profile design. Designed for commercial and residential spaces, these speakers provide 130° wide coverage, ensuring clear and consistent sound across rooms or open areas. Optimized bass-reflex tuning produces firm, tight low-end response, while the full-range speaker unit faithfully reproduces music with clarity and detail.

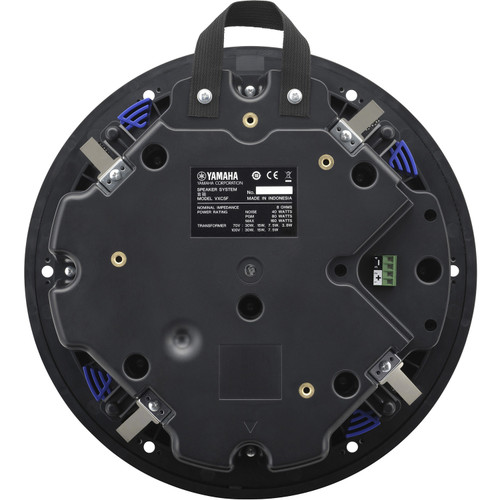

Installation is fast and secure with features like anti-drop tabs, double-threaded speaker clamp screws, and built-in carrying bands for safe handling. The speakers support both low-impedance and high-impedance operation via a simple tap switch on the baffle, providing flexibility for a wide range of audio setups. The low-profile design allows installation in limited ceiling spaces without compromising performance.

The VXC5F speakers come complete with paintable grilles and tile rails for seamless integration with interior decor. Overload protection circuits safeguard speaker components for reliable long-term operation, while the sleek black finish complements any ceiling design. These speakers are ideal for offices, restaurants, retail environments, or any setting that requires high-quality, unobtrusive audio.

Features

  • 4.5" full-range low-profile ceiling speakers for superior music reproduction
  • Wide 130° coverage for consistent audio across rooms and open spaces
  • Optimized bass-reflex design delivers firm, tight low-end
  • Supports low-impedance and high-impedance connections via selectable tap switch
  • Anti-drop tab mechanism ensures secure temporary positioning during installation
  • Built-in carrying band enhances safety and convenience when handling multiple speakers
  • Double-threaded clamp screws for fast and secure mounting

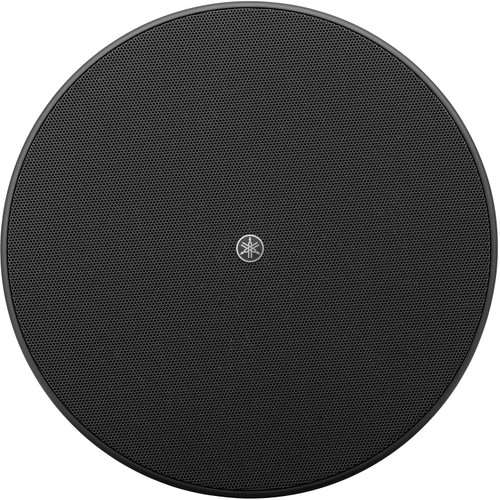

  • Paintable grilles with magnetic catches for seamless aesthetic integration
  • Overload protection circuit safeguards speaker components
  • Black finish complements ceilings and interior spaces

Specifications

System Type Full-range, Bass-reflex
Components 4.5" Full-range
Frequency Range (-10 dB) 60 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical) 130° conical
Nominal Impedance
Transformer Taps 70V: 30W, 15W, 7.5W, 3.8W
100V: 30W, 15W, 7.5W
Power Rating NOISE: 40W, PGM: 80W, MAX: 160W
Sensitivity (1W, 1m) 89 dB SPL
Maximum SPL (Calculated, 1m) 111 dB SPL
Connectors 1 x Euroblock (4 pin) (input: +/-, loop-thru: +/-)
Color Black
Packaging Pair
Certificate UL1480, NFPA70, CE, EAC, RoHS
Cutout Size 11.3" (285 mm)
Dimensions (Dia x D) 12.8" (324 mm) x 5.7" (143 mm)
Weight 24.25 lbs (11 kg)
