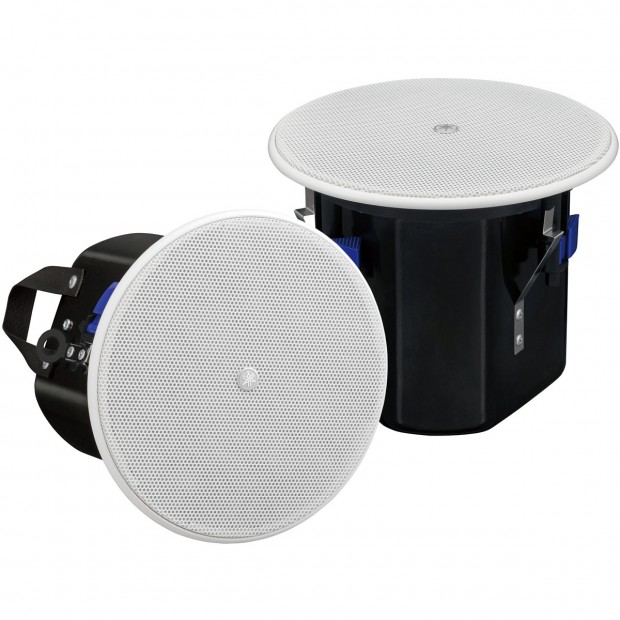

Yamaha VXC4W 4-Inch Commercial In-Ceiling Loudspeakers

The VXC4W 4" in-ceiling loudspeakers are part of Yamaha's renowned Commercial Installation Series, engineered to deliver exceptional music reproduction and crystal-clear speech in a sleek, discreet design. Featuring a 4-inch full-range bass-reflex driver with a newly customized transducer, the VXC4W offers rich, balanced sound with a smooth frequency response from 80 Hz to 20 kHz. Designed for versatility, each speaker includes an internal transformer supporting both high-impedance (70V/100V) and low-impedance (8Ω) operation, easily selectable via the tap switch on the baffle.

Built for ease of installation and safety, the VXC4W includes an Anti-Drop tab that allows temporary ceiling mounting during setup, as well as a flexible carrying band for convenient transport. Each unit comes complete with O-rings, tile rails, and an eyelet for secondary safety wire, ensuring secure and professional installations. The paintable steel grille and white finish allow seamless integration into any decor, making the VXC4W ideal for restaurants, offices, classrooms, retail spaces, houses of worship, and other commercial environments.

Constructed with precision and reliability, the VXC4W combines outstanding sound quality, easy installation, and durable materials for long-term performance. With its wide 130° conical coverage and compact profile, this 4" ceiling loudspeaker delivers immersive, consistent sound throughout any space, the perfect solution for high-quality background music and clear paging applications.

Features

Features

Pair of white 4" commercial in-ceiling loudspeakers
120W peak power handling, compatible with 70V/100V or 8Ω systems
Newly designed transducer for rich music and clear voice reproduction
Optimized bass-reflex tuning for tight, defined low frequencies
Wide 130° conical coverage ensures even sound distribution
Anti-Drop tab for safer, easier ceiling installation
Includes O-rings, tile rails, and a safety eyelet for secure mounting
Flexible carrying band allows convenient handling of multiple units
Overload protection circuit safeguards components
Paintable steel grille blends into any interior decor

Specification

System Type	Full-range, Bass-reflex
Components	4" full-range
Frequency Range (-10 dB)	80 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical)	130° conical
Nominal Impedance	8Ω
Transformar Taps	70V: 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) 100V: 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
Power Rating	NOISE: 30W, PGM: 60W, MAX: 120W
Sensitivity (1W, 1m)	87 dB SPL
Maximum SPL (Caluculated, 1m)	108 dB SPL
Connectors	1 x Euroblock (4P) (Input: +/-, Loop Thru: +/-)
Color	White
Certificate	UL1480, UL2043, NFPA70, CE, EAC, RoHS
Packaging	Pair
Cutout Size	7.3" (186 mm)
Dimensions (H x W x D)	7.7" (195 mm) x 8.9" (225 mm) x 7.7" (195 mm)
Weight	11.4 lbs (5.2 kg)
Shipping Weight	19.84 lbs (9 kg)
