Multi-Zone 70V Commercial Sound System for Background or Foreground Music up to 9,000 SF - Up to 4 Zones (Discontinued Components)

Multi-Zone 70V Commercial Background / Foreground Music Sound System for up to 9,000 SF

This multi-zone 70V commercial sound system is designed for background or foreground music in up to four independent areas or zones totaling 9,000 sq ft with dedicated volume controls for each area and a PTT paging microphone. The Pure Resonance Audio RZMA120BT multi-zone Bluetooth mixer has several audio and microphone inputs enabling the user to choose different audio sources and volumes for the different areas as well as paging to any combination of zones. Great for multiple dining room facilities, sports bars, banquet halls, hotels and other hospitality and entertainment facilities.

Below is an example of how this custom multizone sound system can be set up but can be adjusted to meet your specific needs:

The JBL Control 18C/T are 8" full-range ceiling speakers that are mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation. The JBL Control 18C/T speakers are designed for stable performance and reliability under long-term high-power working conditions. They deliver consistent sound quality for listeners located both off and on axis, designed to provide excellent sound quality for a wide variety of medium to high volume applications.

The JBL Control 19CST are 8" in-ceiling subwoofers that use advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design. High power handling and low distortion makes the Control 19CST an ideal addition for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The unique Nested Chamber design delivers high output from a compact enclosure, while the acoustic low-pass character of this design means it is easy to augment a full-range sound system without an external crossover or separate amp channel. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area. The 8" transducer features a pure butyl rubber surround for extended life and long excursion capability.

The JBL Control 14C/T 4" speakers are designed to provide excellent sound quality for a wide variety of medium volume applications with 120° wide coverage that delivers consistent sound quality for listeners located both off and on axis. The high technology 4" low frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term high power working conditions. The butyl rubber surround provides long term durability and excellent sonic damping while the polypropylene cone is water and humidity resistant.

The JBL Control 25-1 are two-way 5" speakers with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 speakers an excellent choice for a wide variety of applications where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

The Pure Resonance Audio RZMA120BT 4 zone commercial mixer amplifier is designed with 4 ohms, 70 Volt and 100 Volt terminals and 4 x 120W power output. It is a rack mount audio matrix system multi-room solution with MP3, tuner and Bluetooth. Each of the 4 inputs can easily be designated to a different zone, allowing this multi-source mixer-amplifier to provide audio to 4 different zones. Each input is also supplied with separate bass, treble and volume control for precise sound in each individual zone. Background music, paging, public address, the RZMA120BT has it all covered in any 70V commercial multi-zone audio system. The RZMA120BT is simple to operate without complicated programming. It is equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You can also mix 70v and 8 ohms between zones with high impedance and low impedance supported with every zone. Additionally, the RZMA120BT lets you easily record your own message through the mixer-amplifier and play it back through your system via USB or SD card. The RZMA120BT also allows you to conveniently play your own music through the mixer-amplifier via Bluetooth connection. The ease of this system saves both time and energy.

The Denon Professional DN-300Z is an all-in-one audio player that combines the best of disc, wireless, and solid-state media playback — all consolidated into a compact 1RU design. It features front-loading media slots (CD w/single-play mode, USB, SD/SDHC) to deliver intuitive playback of today’s familiar mass-storage mediums. You can also go wireless with long-range Bluetooth audio connectivity (up to 100 feet) and instant recall of up to 8 devices such as smartphones and tablets. The DN-300Z supports CD-DA, MP3, WAV, and AAC file formats and features both RCA audio outputs and balanced XLR outputs. The balanced outputs are a much-needed feature in the professional/commercial sector, since they enable long connection cable runs without any increase in stray noise pickup. The DN-300Z provides the capability, reliability, and versatility to tackle any playback task, from one-off requests to rehearsed program material, in an intuitive, tidy package.

The TOA PM-660U paging microphone is an elegantly styled, compact desk microphone with a convenient push-to-talk button. Its smooth, natural response provides high-quality voice reproduction and excellent articulation to enhance the overall performance of your system. The Rolls HDC39 is a versatile unit that will take an HDMI input, and convert it to Stereo left and right RCA's, convert HDMI to SPDIF in 5.1. The Lowell ACR-159-S is a 19" rackmount AC power panel with eight 15A rear outlets and one 15A front outlet. The panel also features surge protection to 30,000A. It includes a 9ft attached cord with NEMA 5-15P plug and has a black powder epoxy finish.

This system was designed by our talented Pro Acoustics engineers and can easily be customized to meet your specific needs and budget. Buy confidently with our lifetime tech support included with every purchase. Call us today! 1-888-256-4112

JBL Control 18C/T Compact 8" Ceiling Loudspeakers:

• 8" (200 mm) high output driver with polypropylene cone and butyl rubber surround
• 1" (25 mm) soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy installation
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation:
• 90 Watts at 8Ω nominal setting
• 60W multi-tap at 70V/100V
• 58 Hz – 20 kHz bandwidth with 90° coverage
• High 92 dB sensitivity for high maximum SPL



JBL Control 19CST 8" In-Ceiling Subwoofers:

• Unique Nested Chamber design and Linear Dynamic Aperture port design delivers high output from a compact enclosure
• JBL's exclusive SonicGuard overload protection allows higher operational levels and improved system reliability
• Long excursion 8" driver
• Packaged with grille, backcan and tile rails for fast installation and easy stocking
• Simple installation and wire connection method



JBL Control 14C/T Compact 4" Ceiling Loudspeakers:

• 4" High output driver with polypropylene cone and butyl rubber surround
• 0.75" Soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy install
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
• 30 Watts at 8Ω nominal setting
• 25 Watts multi-tap at 70V/100V
• 74 Hz – 20 kHz bandwidth with wide 120° coverage
• All mounting hardware included



JBL Control 25-1 Indoor/Outdoor 5" Speakers:

• 5.25" woofer with woven fiberglass cone
• 3/4" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer
• High fidelity sound character with broad frequency response of 60 Hz – 20 kHz

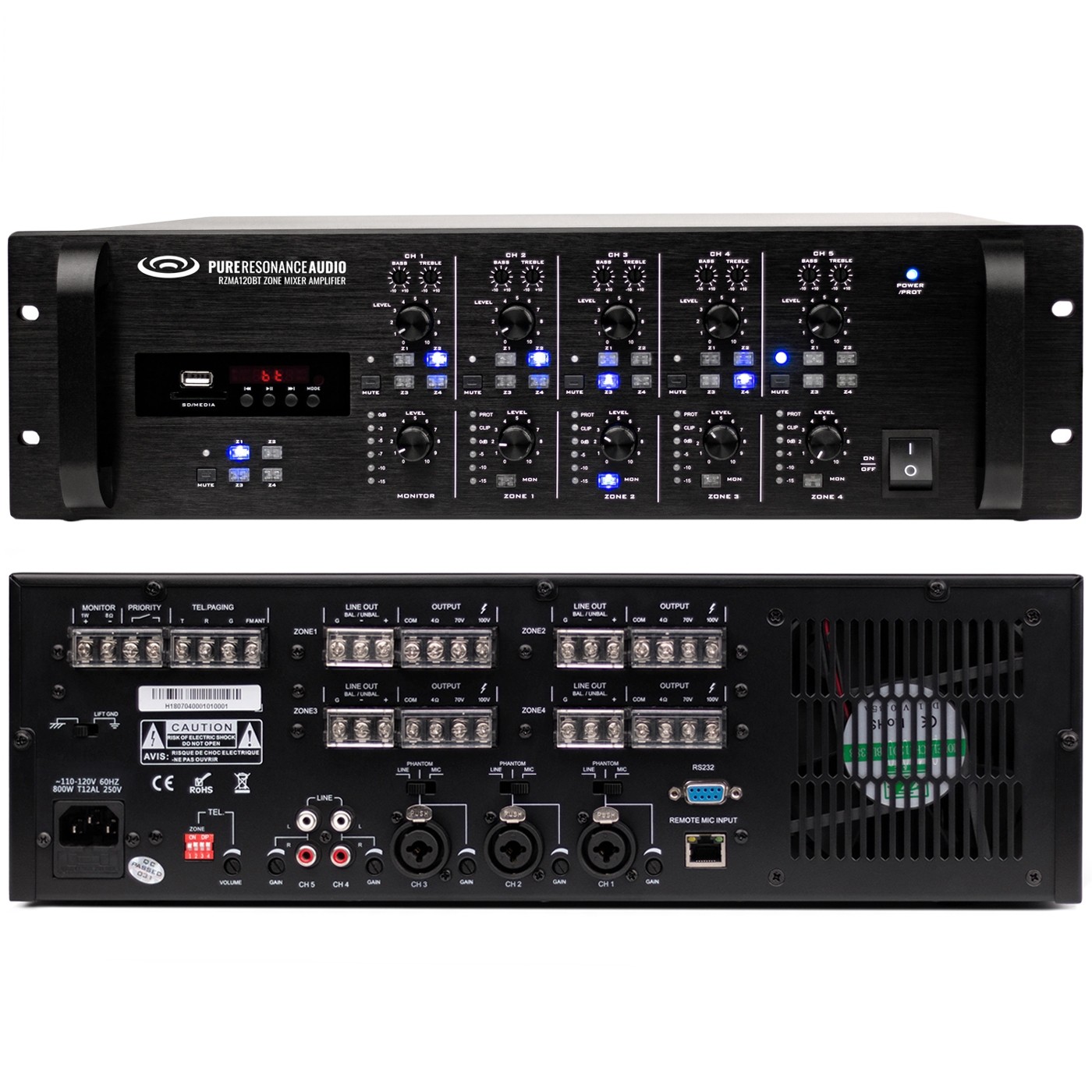

Pure Resonance Audio RZMA120BT 4-Zone 70V Mixer Amplifier with Bluetooth:

• 4 channel amplifier in a 3U 19" rack mount design
• All source inputs can be matrix assigned to different 4 zones output simultaneously
• The 5 channel inputs & MP3 input are designed with separate bass, treble and volume control
• 3 microphone/line inputs with phantom power and gain control
• 2 AUX inputs by RAC with gain control
• MP3 player with SD and USB inputs has a separate power supplied module
• Built-in tuner audio source
• 1 4 zone remote microphone input via RJ45 port
• 4 channel line inputs and speaker outputs
• Versatile speaker outputs for each four channels: 70V, 100V and 4 Ω
• RS232 serial control port for third-party system communication
• Priority input to override other inputs (equal to EMC input)
• Input priority level from high to low:
• Before contact priority control input: MIC1 TEL Remote MIC MIC2= MIC3 = LINE4 = LINE5 = MP3
• After contact priority control input: TEL MIC1 Remote MIC MIC2 = MIC3 = LINE4 = LINE5 =MP3
• Built-in monitor with volume control
• Extensive protection of thermal, short-circuit, clip and overload with indicators
• Ground lift switch

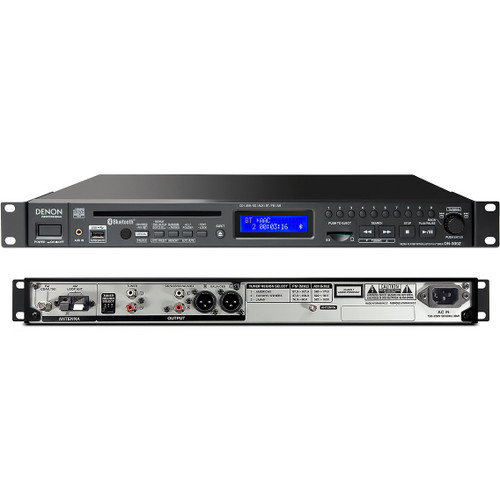

Denon Professional DN-300Z Media Player with Bluetooth:

• Super-fast loading, slot-in CD player
• Supports removable USB thumb and HDDs, SD/SDHC cards
• Wireless audio playback from tablets and smartphones via Bluetooth
• Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
• Up to 100 foot (30m) wireless Bluetooth range
• Plays CD-DA, MP3, WAV, and AAC files
• 3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5 mm output
• AM/FM Tuner w/ dedicated audio out for multi-room use
• RCA and balanced XLR audio outputs
• 10-key direct track access
• Random, repeat, and single play playback modes
• Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
• Folder only and All play modes
• Lockable front-panel keeps program material from being interrupted
• IR controllable with included, compact remote
• 1RU chassis with removable rack ears
• Detachable IEC-weighted AC inlet
• 100-220v switching power supply



TOA PM-660U Desktop PTT Paging Microphone:

• Cardioid dynamic element
• Elegant, space-saving integral stand design
• Push-to-talk bar with locking lever
• Extra switch contact for mute or relay control
• Five year warranty

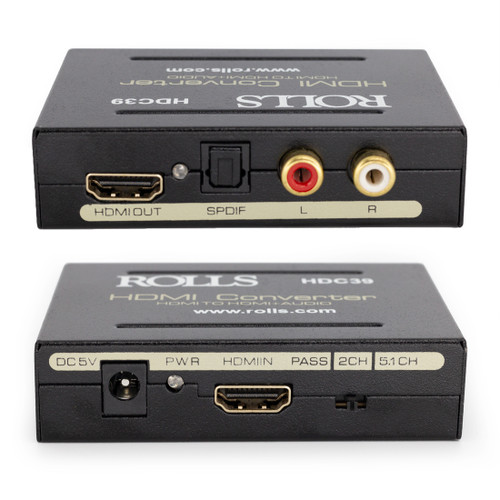

Rolls HDC39 HDMI to RCA Audio Converter:

• Converts HDMI to stereo RCA line level
• Converts HDMI to 5.1 SPDIF
• Power supply is included



Lowell ACR-159-S 15A 9-Outlet Rackmount Power Panel:

• Maximum surge current: 30,000A
• VPR (UL1449-3): 400V
• Endurance: 100 WCS (unlimited low level surges)
• Response time: 1 nanosecond
• EMI/RFI noise reduction: 20DB@100kHz
• Protection mode: Line to neutral only. No ground contamination
• Attached 9-ft. cord with NEMA 5-15P plug



Lowell 200LVC DSB 200W Rotary Switch 2-Gang 70V/100V Wall Plate Decora Volume Control:

• Stainless steel assembly mounts in two-gang
• E.O.Box with minimum depth requirement of 2.5"
• Mud ring
• Non-corrosive wall plate

• (8) JBL Control 18C/T Compact 8" Ceiling Loudspeakers
• (2) JBL Control 19CST 8" In-Ceiling Subwoofers
• (4) JBL Control 14C/T Compact 4" Ceiling Loudspeakers
• (4) JBL Control 25-1 Indoor/Outdoor 5" Speakers
• (1) Pure Resonance Audio RZMA120BT 4-Zone 70V Mixer Amplifier with Bluetooth
• (1) Denon Professional DN-300Z Media Player with Bluetooth
• (1) TOA PM-660U Desktop PTT Paging Microphone
• (1) Rolls HDC39 HDMI to RCA Audio Converter
• (1) Lowell ACR-159-S 15A 9-Outlet Rackmount Power Panel
• (4) Lowell 200LVC DSB 200W Rotary Switch Two-Gang Wall Plate Decora Volume Control 70V or 100V

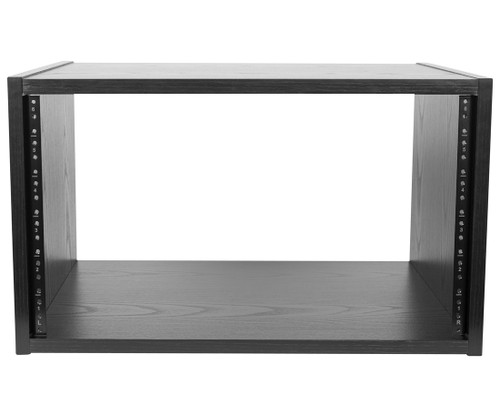

• (1) Raxxess ER-6 6U 16" Deep Economy Rack
• (1) Raxxess SFG-1 1U Steel Blank Flanged Panel
• (1) Raxxess PTSW25 Phillips Rack Screws and Washers (25 pc)
• (2000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
