Multi-Zone Commercial Background and Foreground Music Sound System up to 10,000 SF - Up to 4 Zones (Discontinued Components)

Multi-Zone Commercial Background/Foreground Music Sound System (Up to 10,000 Sq Ft)

This multi-zone distributed commercial sound system is designed for background or foreground music for up to four independent areas or zones up to 10,000 sq. ft. total. The multi-zone mixer has several audio and microphone inputs enabling the user to choose different audio sources and volumes for the different areas as well as paging to any combination of zones if needed. Great for restaurants with different dining areas, retails stores or hospitality applications.

Below is an example of how this custom commercial sound system can be set up (can be adjusted to meet your specific needs):

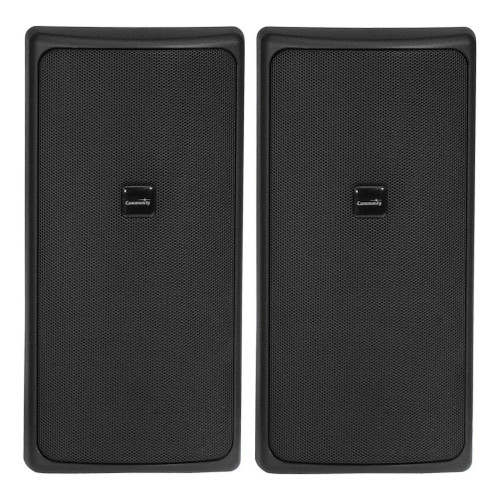

Community’s DS5 5" 2-way surface mount speakers are a low profile, compact artfully styled enclosure with dynamic sound quality and excellent intelligibility. This full-range model provides high power handling, high sensitivity, and exceptional speech clarity. Ideal for installations where space is a premium, these loudspeakers easily outperform larger size format speakers, the DS5 is ideal for both music and speech applications and is equipped with a built-in autoformer, with a convenient front-accessible power tap switch hidden behind the rotatable logo. For durability and improved sonic quality, the cabinet features thick-wall, internally-reinforced high impact ABS construction with rounded surfaces that greatly reduce the acoustic resonances common in flat-sided cabinets.

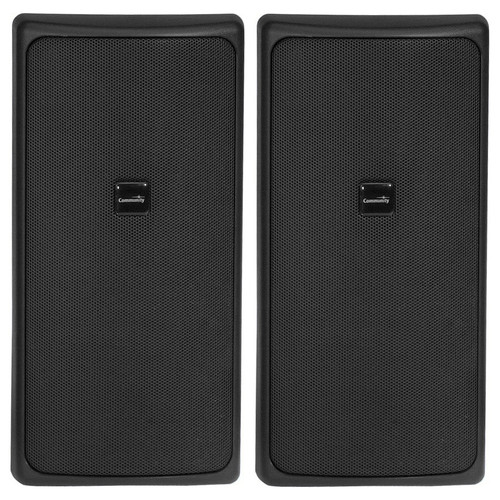

The Community DS8 8" 2-way surface mount speakers for larger installations provide higher sound pressure levels, higher sensitivity, and greater bass extension. The DS8 also easily outperforms competitive 10" format loudspeakers. The DS models are equipped with built-in autoformers, allowing the full loudspeaker output to be realized with low impedance or 70V or 100V distribution lines and is suited for indoor or continuous outdoor direct exposure applications.

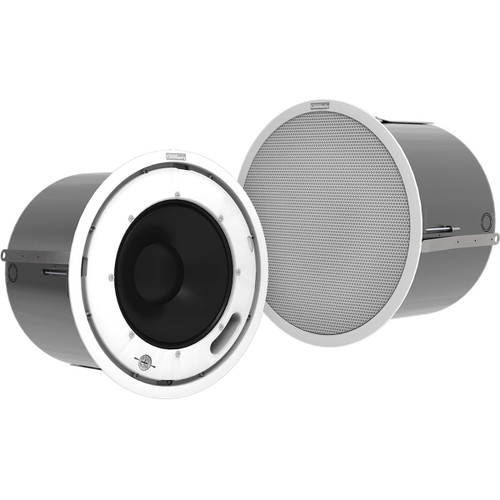

The Community D10SUB ceiling mount subwoofers provide powerful, high-impact bass response intended to augment any combination of D series full-range models. By including a complement of D10SUBs into a distributed system, musical results that equal or exceed that of much larger and more costly surface-mount systems can readily be achieved. The D10SUB’s clean, clear bass response provides a compelling attraction for shoppers in a retail environment, and a memorable experience for bar, pub and restaurant patrons.

The Rolls RM424 switchable four zone mixer combines inputs for two paging microphones with two line level source inputs. Each input is switch selected to output any combination of the four zone outputs. The outputs are all balanced XLR connectors and the remote volume provides each zone with the means for external volume controls. The microphone inputs feature selectable ducking for paging. The RM424 is easy for anyone to use from the front, but from the rear it is just complex enough it will fill even the most demanding four zone installation requirements. With the included external power supply the RM424 has just about every approval known to man so you can use it in almost any installation.

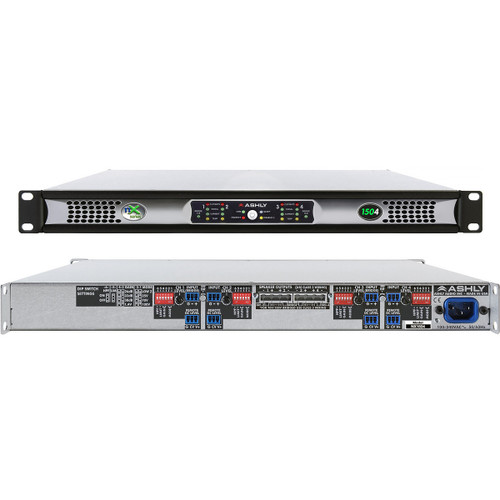

The Ashly nX 1504 allows for each speaker output to be configured for low impedance (2, 4, or 8 Ohm), or 25V, 70V, or 100V constant voltage output. This amplifier uses state of the art, lightweight, high power, high-efficiency switching technology with active power-factor-correction. Designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers. Reduce power consumption using Ashly EMS™ (Energy Management System) by triggering a sleep mode that draws <1W, which meets the most aggressive Energy Star® benchmark. Follow pre-scheduled preset settings including levels and sources using RTC Event Scheduler.

The Rolls HR261 is a stereo sonic exciter, designed for professional audio, sound studio applications or even home use. If you need to enhance your sound quality this is the unit to get. It is hard to believe such a small box can enhance audio signals so much. You just have to hear it to believe it.

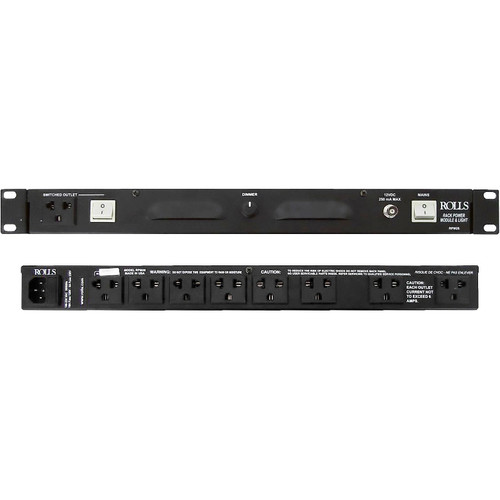

The Rolls RPM26 is a single rack space, power distribution unit supplying 9 total switched AC power outlets. Eight outlets are located on the rear panel, two of which are spaced widely so as to accommodate "wall-wart" type power adapters. A single outlet on the front panel has its own separate power switch. The RPM26 also features brilliant white LED rack lighting, with a Dimmer control. The advantage of the LED lights is a better quality of light rather than incandescent type lights - and LEDs draw such little power, they should never need replacing. A 12VDC, 250mA BNC connector has been provided on the front panel for optional lighting.

The Lowell 200LVC volume control features a phoenix-style easy to connect, plug-in screw termination strips for pre-wire convenience. Controls have a wire capacity up to 14gauge. Attenuation is 3dB per step per step with two positions of 6dB prior to OFF as noted. The 200LVC is a 2-gang stainless steel assembly that mounts within a 2-gang E.O.Box with a minimum depth requirement of 2.5" including mud ring (if used). This model is ideal for applications where a powerful and durable, non-corrosive wall plate mounted control is specified.

This system was designed by our talented Pro Acoustics engineers and can easily be customized to meet your specific needs and budget. Buy confidently with our lifetime tech support included with every purchase. Call us today! 1-888-256-4112
