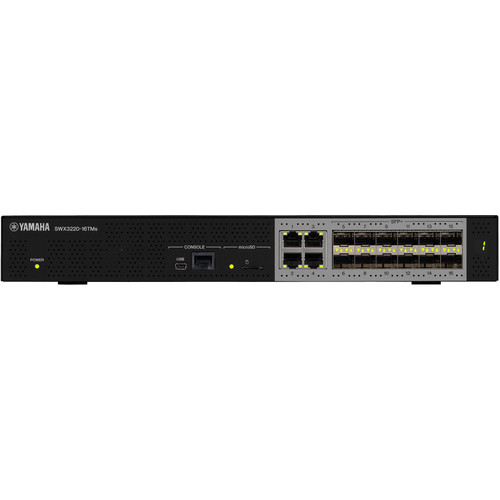

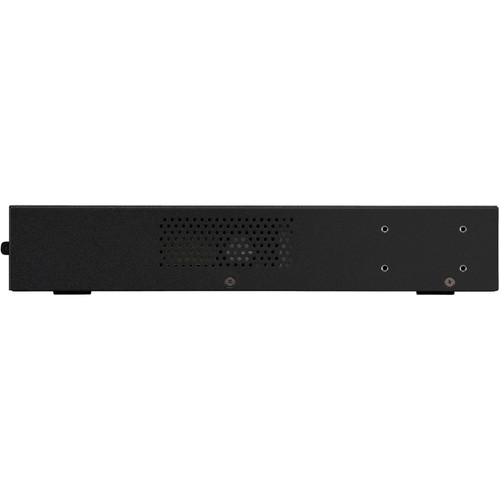

The SWX3220-16TMs is a high-performance Standard L3 Multi-Gigabit network switch designed for modern backbone networks, professional AV systems, and enterprise installations. With 12 SFP+ ports and 4 multi-gigabit ports supporting 100M/1G/2.5G/5G/10G speeds, it delivers the flexibility and capacity needed for high-bandwidth applications, ensuring low-latency, reliable connectivity.
Equipped with a built-in RADIUS server, the SWX3220-16TMs enables advanced network security management, allowing centralized control of network access. It also supports PTPv2 Transparent Clock (TC), making it ideal for precise timing applications, such as professional audio, video, and industrial automation systems.
Fully compatible with Yamaha LAN Monitor, this switch allows easy monitoring and management of your network. Optimized for Dante and other high-quality audio/video systems, the SWX3220-16TMs combines enhanced features, high-speed connectivity, and robust L3 performance, making it the ideal choice for businesses, concert halls, and other installations requiring scalable, high-capacity networking.
| LAN Ports | Standard: IEEE 802.3 (100BASE-TX/1000BASE-T/2.5GBASE-T/5GBASE-T/10GBASE-T) Number of Ports: 4 Communication Mode: Auto negotiation Connector Type: RJ-45 Polarity: Automatic detection of straight/cross, or fixed at straight |
|---|---|
| SFP+ Ports | Standard: IEEE 802.3z (1000BASE-SX/1000BASE-LX), IEEE 802.3ae (10GBASE-SR/10GBASE-LR) Number of Ports: 12 |
| Console Ports | Standard: RS-232C, USB 2.0 Connector Type: RJ-45, USB mini-B (5-pin) Data Transmission Speed: 9600 (default value)/19200/38400/57600/115200 bit/s |
| Performance | Switching Bandwidth: 320 Gbit/s Forwarding Rate: 238.10 Mpps Flame Buffer: 3 MB |
| microSD Slot | Standard: microSD/microSDHC File System: FAT/FAT32 Number of Slots: 1 |
| Indicators | POWER, microSD, STACK ID, LAN port (LINK/ACT, SPEED), SFP+ port (LINK/ACT, SPEED) |
| MAC Address | Indicated in product label on top panel of unit |
| Number of Fans | 3 |
| Operating Environment | Ambient temperature: 0 - 50 °C, Ambient humidity: 15 - 80 % (non-condensing) |
| Storage Environment | Ambient temperature: -20-60˚C, Ambient humidity 10–90% (non-condensing) |
| Power Supply Voltage, Frequency | AC100 - 240V, 50/60 Hz |
| Maximum Power Consumption | 61W |
| Accessories | Manual (Read This First), Power cord, Power cord clamp, Dust covers, Legs, 19-inch rack mount hardware, Wall mount hardware and Screws |
| Dimensions (H x W x D) | 1.73" (44 mm) x 13" (330 mm) x 9.8" (250 mm) |
| Weight | 5.73 lbs (2.6 kg) |
