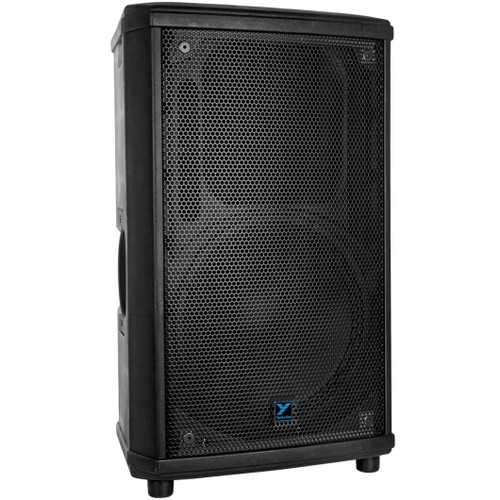

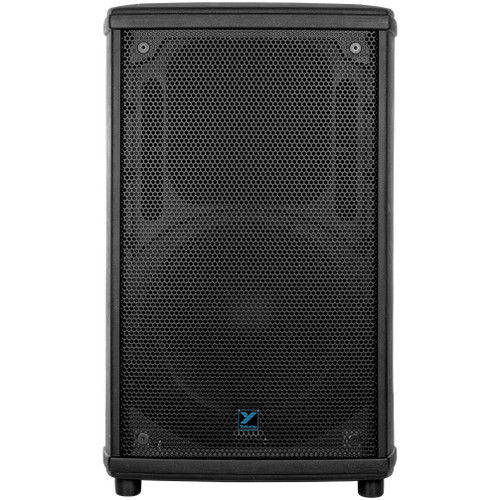

The NX55P-2 is the most powerful speaker in the NX Series, delivering 2000 watts of peak power and 1000 watts of program power. Designed for professional live sound, it features a 12-inch low-frequency driver with a 3-inch voice coil and a 1.4-inch high-frequency driver for clear, full-range performance. Its traditional analog design provides ample headroom and reliable operation, making it ideal for front-of-house or stage-monitor use.

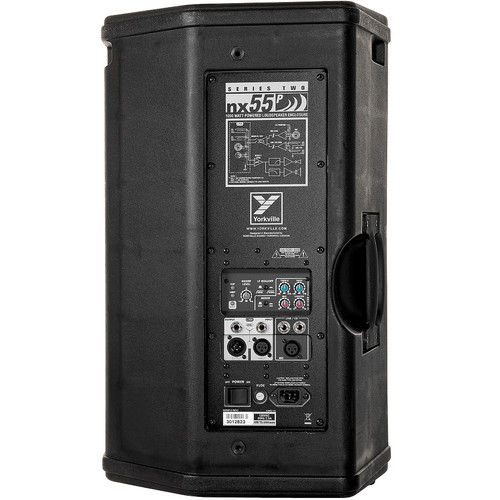

A built-in mixer section adds exceptional flexibility. When enabled, it provides an XLR microphone input and dual 1/4 inch line inputs with independent level controls and 2-band EQ. Link inputs and outputs allow multiple cabinets to be connected together. Up to three onboard mixers can operate within a linked system, providing up to three mic inputs and six line inputs without requiring an external mixer.
The NX55P-2 also includes a selectable low-frequency rolloff for use with a subwoofer or as a vocal monitor. Protected inputs and controls, efficient cooling design, and integrated flying hardware make it suitable for portable PA systems or permanent installations. Built for durability and performance, it continues the NX tradition of proven reliability.
| System Type | 2-way |
|---|---|
| Powered or Passive | Powered |
| Program Power (watts) | 2000 watts peak, 1000 watts program |
| Max SPL (dB) | 128 dB continuous |
| Frequency Response | 45 - 18k (Hz +/-3 dB) |
| Crossover Frequency | 2 kHz |
| LF Woofer | 12" |
| Crossover Frequency | 2 kHz |
| LF Driver | 12" |
| HF Driver(s) | 1.4" (1-inch exit) |
| HF Dispersion (°H x °V) | 80° x 50° |
| Power Cable | Yes (Detachable IEC) |
| Mixer Controls | Mixer on/off switch Mic Input Gain Line Input Gain>br />Treble/Bass Tweak |
| Level Controls | Main Volume |
| EQ Controls | 100 Hz HP Filter (LF Rolloff) |
| Inputs | (1/4") - 2 (line input) 2 (link in/out) (XLR) - 1 (mic) 2 (line in/out) |
| Flying Hardware | 2x Top, 2x Bottom 1x Pullback 1/4-20 Threading |
| Optional Flying Hardware | NXF Flyware |
| Bar Handles | 1x Side |
| Pole Mount Adapter | 1 Bottom (1 3/8-inch/3.5 cm) |
| Enclosure Materials | Molded Polypropylene |
| Grille | Powdered Coated Perforated Steel |
| Dimensions (H x W x D) | 26.5" (673.1 mm) x 16" (406.4 mm) x 12.25" (311.15 mm) |
| Weight | 41 lbs (18.6 kg) |
