Stadium or Arena Wireless Microphone System
with 2 Wideband Antennas, a Handheld and Headset Microphone

Our stadium, arena, and gymnasium wireless microphone solutions deliver consistent high-performance audio and address the need for long-range capabilities, wide coverage, reliable high-quality vocal transmission, elimination of signal-dropout, and RF interference rejection which is essential for sporting event performers, national anthem singers, live vocalists, public address announcers, and referees. Great for applications that need high-output transmission distance such as indoor/outdoor complexes like baseball and football fields, large college gyms, hockey and ice skating rinks, rodeos, horse racing tracks, and more.

This stadium wireless microphone system with a handheld and headworn microphone is ideal for sporting event referees, announcers, public speakers and other performers where range and ease-of-operation are highly important. This system features microphones with transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage. Enjoy exceptional audio quality from this Shure wireless microphone system providing outstanding wireless functionality for a wide range of applications. The two Shure unidirectional wideband antennas increase range while reducing interference.

For optimal use, mount the receivers or antenna system as high as possible in the press box or at the top of the stadium or venue and at least 8 to 10 ft above the ground, floor or stage. Make certain that there is an unobstructed line-of-site path between the receiver antenna and the transmitter. When the operating environment is particularly difficult or large you can obtain the best possible range from your system by using this diversity system with at least a 30-50mW transmitter. The working range is an average of 300 ft. We recommend that you test the antenna location before installing. Diversity systems with multiple frequencies and auto-scanning almost always have much better range and performance than similar non-diversity systems.

Shure QLX-D Wireless Systems:

• QLXD4 Digital Wireless Receiver:
• 64 MHz tuning bandwidth (region dependent)
• More than 60 preset compatible channels per frequency band (region dependent)
• Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
• Digital predictive switching diversity ensures solid RF connection
• AES 256-bit encryption for secure wireless transmission
• Up to 60 dB of adjustable audio gain
• High-contrast LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• Detachable ½ wave antennas
• Mic / line switchable XLR output
• 1/4" Instrument output
• Durable aluminum construction with brushed finish


• QLXD2/SM58 Handheld Wireless Microphone Transmitter:
• 24-Bit digital audio quality
• Incredibly efficient RF spectrum usage
• Quick syncing with a wireless receiver over IR at the push of a button
• Clear, uninterrupted signal over the entire operating range
• AES 256-bit encryption for secure transmission
• Over 120 dB of dynamic range: no transmitter gain adjustment needed
• 1, 10 mW selectable RF output power
• Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
• External charging contacts for docked charging
• Backlit LCD with easy to navigate menu and controls
• Selectable display mode showing group/channel, frequency, or battery runtime
• Rugged metal construction
• Frequency and power lockout


• SM35 Performance Headset Condenser Microphone:
• Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
• Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
• Flexible gooseneck design allows for optimized placement that further improves source isolation
• Lightweight and low-profile form enables comfortable, long-wearing use
• TA4F (TQG) connector is compatible with any Shure wireless bodypack
• Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
• Tailored frequency response refined for clear, crisp vocal reproduction
• Included in BLX and GLX-D® wireless systems, renowned for their ease of use and reliable performance
• Legendary Shure precision engineering for durability and performance


• QLXD1 Wireless Bodypack Transmitter:
• Over 120 dB of dynamic range: no transmitter gain adjustments needed
• AES 256-bit encryption for secure transmission
• Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
• External charging contacts for docked charging
• Backlit LCD with easy to navigate menu and controls
• Selectable display mode showing group/channel, frequency, or battery runtime
• 4-Pin male mini connector (TA4M)
• Rugged metal construction
• Detachable ¼ wave antenna
• Frequency and power lockout



Shure PA805SWB Directional Antennas for PSM Systems:

• Mounted on a microphone stand or wall
• Increases range and reduces interference
• Positive-action, break resistant, swivel adapter adjustable from 0 to 90 degrees

• (1) Shure QLXD24/SM58 Handheld Wireless System
• (1) Shure QLXD14/SM35 Headworn Wireless Microphone System
• (2) Shure PA805SWB Directional Antennas for PSM Systems

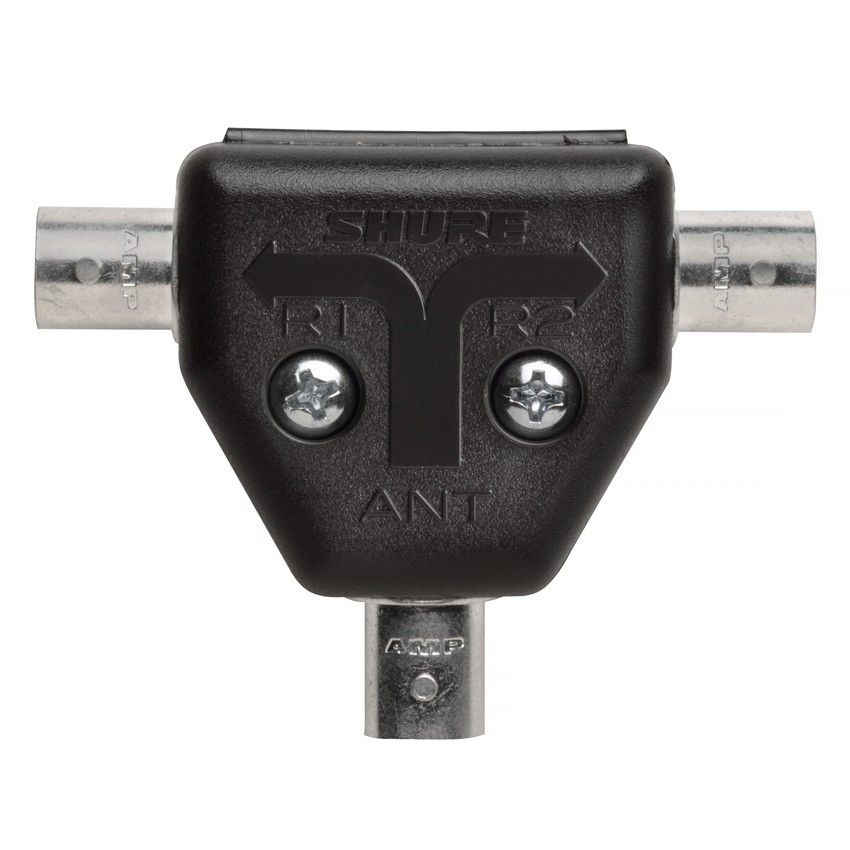

• (1) Shure UA221 Passive Antenna Splitter/Combiner Kit
• (2) Shure UA825 Coaxial BNC-to-BNC Remote Antenna Extension Cables - 25ft
• (1) Shure SBC200-US Dual Docking Battery Charger with PS45US Power Supply
• (2) Shure SB900A Lithium-Ion Rechargeable Batteries
• (2) CBI MLU 15 Ultimate 20G Microphone Cables - 15ft
