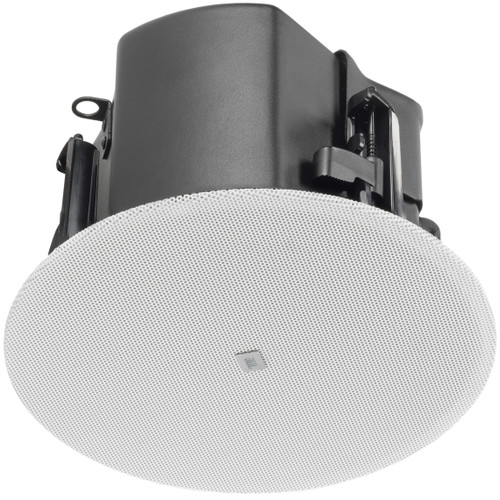

The Control 412C/T 3" compact full-range ceiling loudspeakers deliver premium sound quality in a sleek, unobtrusive design. Part of the Control 400 Standard Coverage Series, these speakers feature a 76 mm (3") wide-bandwidth driver mounted in a ported baffle with a pre-attached backcan for quick and secure installation. Their wide 160° coverage ensures consistent, high-quality audio both on- and off-axis, making them perfect for retail stores, cafes, airports, educational facilities, and other commercial spaces.
With a frequency response of 68 Hz - 17 kHz and high power handling (20W nominal, 80W peak at 8½), the Control 412C/T provides low distortion and clear, enveloping sound. The integrated 15W multi-tap transformer allows flexible installation in distributed 70V/100V systems, while the 8½ direct input supports up to two speakers in parallel on a 4½ amplifier channel.

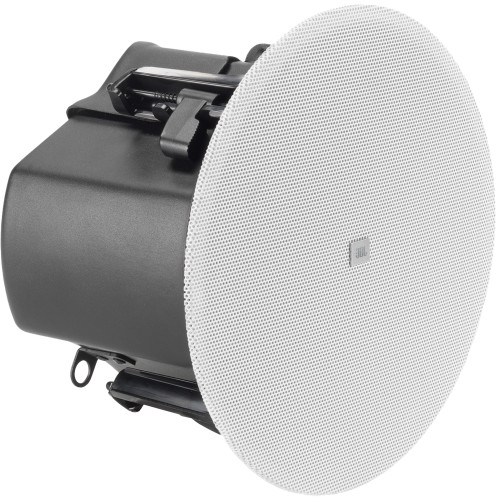

The speakers feature a full-face bezel-less grille that blends elegantly into any room design and is magnetic for easy removal, supplemented with a safety tether. Paintable white grilles are included, with optional black and square grilles available. UL 1480A and UL 2043 listings ensure compliance with commercial standards. The Control 412C/T pairs seamlessly with the Control 419CS/T subwoofer for enhanced low-frequency performance.
| Frequency Range (-10 dB) | 68 Hz - 17 kHz |
|---|---|
| Frequency Response (±3 dB) | 85 Hz - 16 kHz |
| Power Capacity | 60W Continuous Program (2 hrs) 30W (120W Peak), Continuous Pink Noise (2 hrs) 20W (80W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 84 dB |
| Nominal Coverage Angle | 160° conical |
| Directivity Factor (Q) | 2.9 |
| Directivity Index (DI) | 4.6 dB |
| Rated Maximum SPL | 99 dB continuous pink noise (105 dB peak) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 7.1Ω at 500 Hz |
| Transformer Taps | 70V: 15W, 7.5W, 3.8W & 1.9W 100V: 15W, 7.5W, 3.8W |
| Recommended Protective High-Pass Filter Frequency | 80 Hz (24 dB/oct LR) |
| Transformer Insertion Loss | 0.7 dB @ 1.9W; 0.7 dB @ 3.8W; 0.8 dB @ 7.5W; 0.8 dB @ 15W |
| Maximum Input Voltage | 14V RMS, 28V Peak (2hrs at 8Ω Input) |

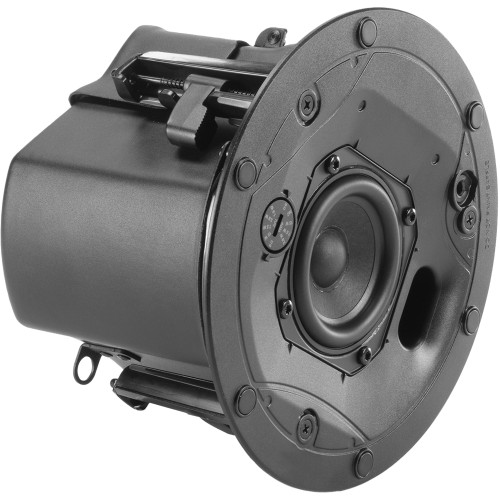

| Full-Range Driver | 3" (76 mm) full range driver with paper cone, Polymerized Styrene Butadiene Rubber surround, high-temperature voice coil, copper coupling ring for low distortion and HF extension |
| Enclosure Material | Backcan: Powder-coated formed steel Baffle: PC/ABS, flammability rated UL 94 5VB |
| Grille | White (RAL9003) |
| Dimensions (Dia x H) | 5.4" (134 mm) x 5.7" (143 mm) |
| Net Weight (ea) | 3.86 lbs (1.75 kg) |
| Shipping Weight (Pair) | 17.46 lbs (7.92 kg) |
