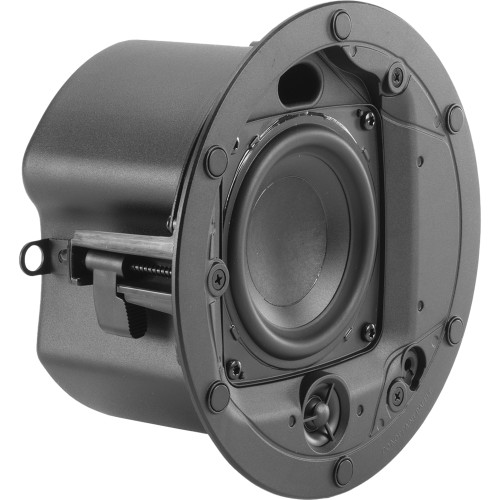

The Control 414C/T Micro Plus is a high-performance 4" 2-way ceiling loudspeaker designed for professional background music and paging applications. Equipped with a 103 mm (4") woofer and a 13 mm (0.5") soft-dome tweeter, it delivers clear, balanced audio across a wide frequency range of 69 Hz to 25 kHz. With a remarkable 160° coverage pattern, it ensures consistent sound dispersion throughout a room, making it ideal for cafes, retail stores, offices, hotels, and educational facilities.
Designed for both low-impedance and distributed audio systems, the Micro Plus features a built-in 25W UL-registered transformer for 70V/100V operation, while also supporting an 8½ direct connection. The transformer provides exceptionally low saturation even at high drive levels, delivering low-distortion, high-fidelity sound for commercial installations. With a peak output rating of 100W, the Micro Plus offers more headroom and output than the standard Micro version.

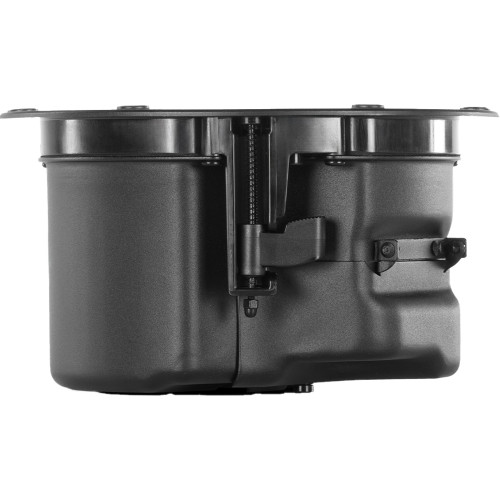

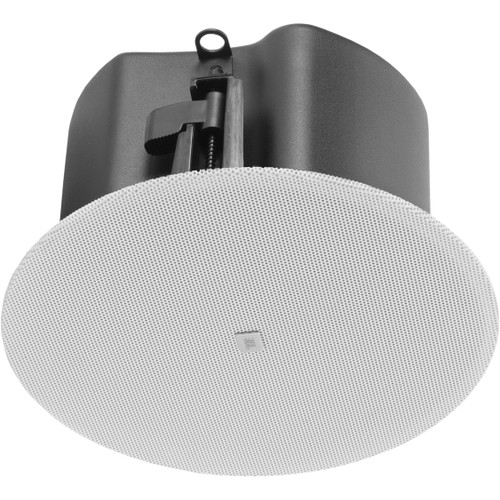

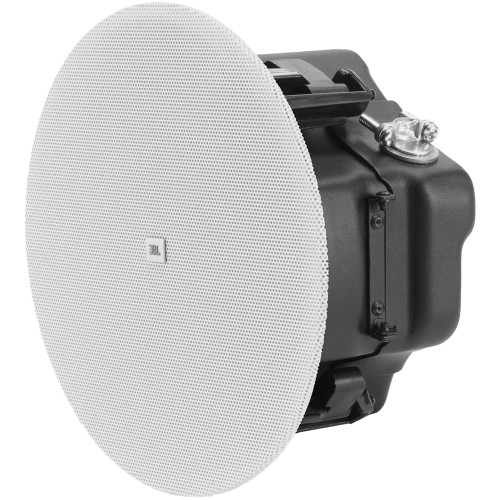

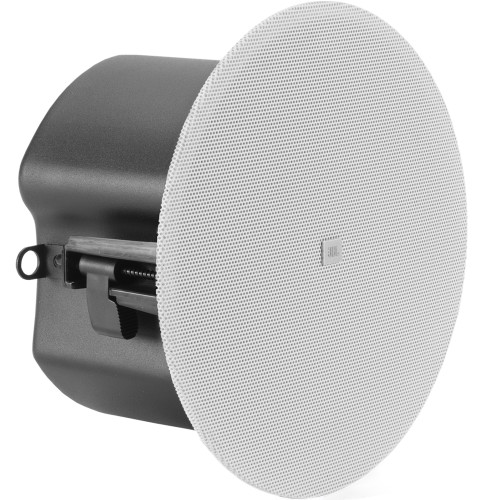

The sleek bezel-less magnetic grille integrates seamlessly into modern ceilings and can be painted to match the decor. The package includes a pre-attached backcan, C-ring, tile rails, and safety tether for fast and secure installation. For enhanced low-frequency performance, pair the Control 414C/T Micro Plus with the JBL Control 419CS/T subwoofer. UL 1480A and UL 2043 certifications ensure compliance with commercial building safety standards, making it a reliable, high-output solution for professional distributed audio systems.
| Frequency Range (-10 dB) | 69 Hz - 25 kHz |
|---|---|
| Frequency Response (±3 dB) | 93 Hz - 21 kHz |
| Power Capacity | 25W (100W Peak) Continuous Pink Noise Power (100 hrs) |
| Sensitivity | 85 dB |
| Nominal Coverage Angle | 160° conical |
| Directivity Factor (Q) | 2.9 |
| Directivity Index (DI) | 4.6 dB |
| Rated Maximum SPL | 99 dB continuous pink noise (105 dB peak), 25W tap |
| Transformer Taps | 70V: 25W, 12W & 6W 100V: 25W, 12W |
| Recommended Protective High-Pass Filter Frequency | 70 Hz (24 dB/oct LR) |
| LF Driver | 4" (103 mm) with PP cone and paper cup, Polymerized Styrene Butadiene Rubber surround |
| HF Driver | 0.5" (13 mm) voice coil with aluminum bobbin, PEI diaphragm, neodymium magnet |
| Enclosure Material | Backcan: Powder-coated formed steel Baffle: PC/ABS, flammability rated UL 94 5VB |
| Grille | White (RAL9003) |
| Dimensions (Dia x H) | 8.1" (203 mm) x 4.6" (114 mm) |
| Net Weight (ea) | 4.67 lbs (2.12 kg) |
| Shipping Weight (Pair) | 18.96 lbs (8.6 kg) |
