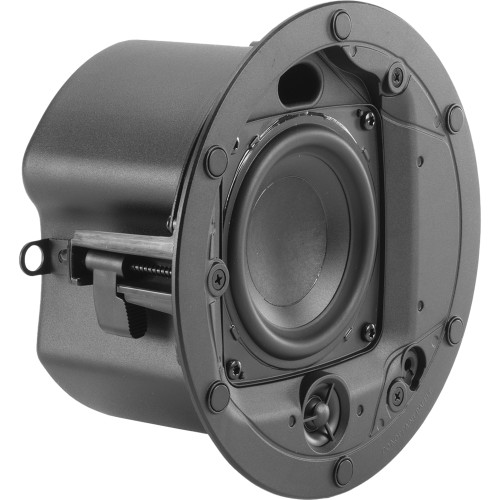

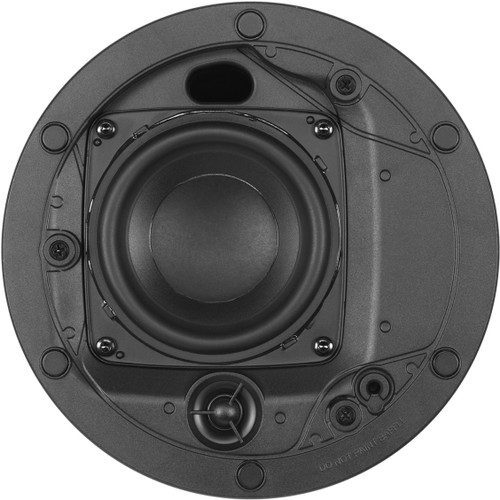

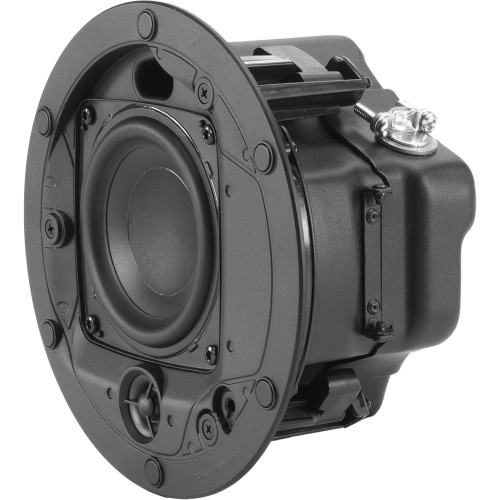

The Control 414C/T Micro is a high-performance, ultra-compact 4" 2-way ceiling loudspeaker designed for outstanding sound in background music and paging systems. Featuring a 103 mm (4") woofer and a 13 mm (0.5") soft-dome tweeter mounted coaxially in a ported baffle, it delivers clear, balanced audio with an extended frequency range of 69 Hz-25 kHz. With its remarkably wide 160° coverage pattern, the Control 414C/T Micro ensures even sound dispersion throughout any room.
Engineered for both low-impedance and distributed systems, the 414C/T Micro supports 8½ direct connection and 70V/100V operation via a 10W multi-tap transformer. Rated at 15W continuous and 60W peak, it's ideal for commercial environments such as cafes, retail stores, hotels, airports, classrooms, and corporate facilities. The UL-listed transformer provides consistent, low-distortion performance even at high levels, ensuring reliable operation for professional installations.

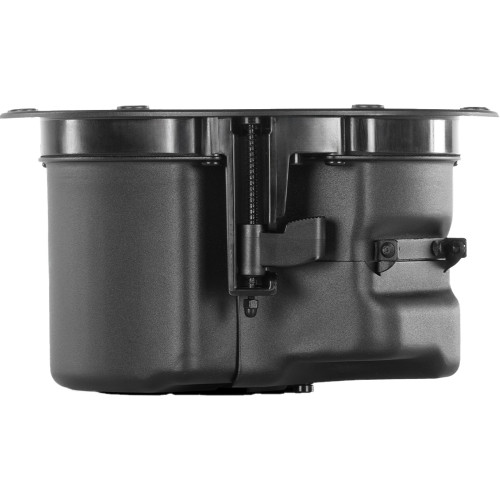

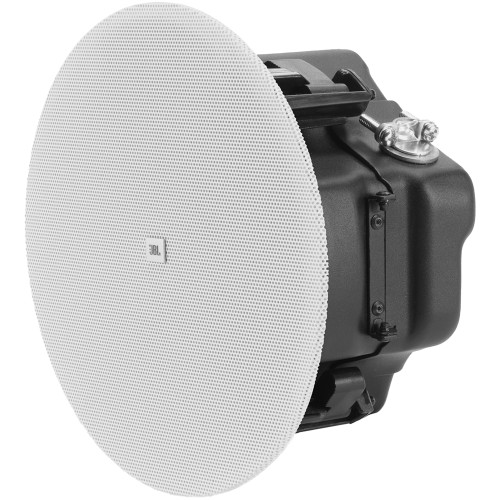

The elegant bezel-less magnetic grille integrates seamlessly into modern interiors and can be painted to match the decor. A pre-attached backcan, C-ring, and tile rails enable fast installation, while a safety tether ensures secure mounting. For enhanced low-frequency response, pair the Control 414C/T Micro with the JBL Control 419CS/T subwoofer. UL 1480A and UL 2043 listings confirm compliance with commercial building safety standards, making this compact loudspeaker a smart, versatile solution for distributed sound systems.
| Frequency Range (-10 dB) | 69 Hz - 25 kHz |
|---|---|
| Frequency Response (±3 dB) | 93 Hz - 21 kHz |
| Power Capacity | 45W Continuous Program (2 hrs) 22.5W (90W Peak), Continuous Pink Noise (2 hrs) 15W (60W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 86 dB |
| Nominal Coverage Angle | 160° conical |
| Directivity Factor (Q) | 2.9 |
| Directivity Index (DI) | 4.6 dB |
| Rated Maximum SPL | 98 dB continuous pink noise (104 dB peak), 8 ohms tap 95 dB continuous pink noise (101 dB peak), 10W tap |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 6.5Ω at 290 Hz |
| Transformer Taps | 70V: 10W, 5W, 2.5W, 1.2W & 0.6W 100V: 10W, 5W, 2.5W & 1.2W |
| Recommended Protective High-Pass Filter Frequency | 70 Hz (24 dB/oct LR) |
| Transformer Insertion Loss | 0.1 dB @ 0.6W; 0.5 dB @ 1.2W; 0.7 dB @ 2.5W; 1.0 dB @ 5W; 1.1 dB @ 10W |
| Maximum Input Voltage | 9.9V RMS, 19.8V Peak (100hrs at 8Ω Input) 12.1V RMS, 24.2V Peak (2hrs at 8Ω Input) |
| LF Driver | 4" (100 mm) with PP cone and paper cup, Polymerized Styrene Butadiene Rubber surround |
| HF Driver | 0.5" (13 mm) voice coil with aluminum bobbin, PEI diaphragm, neodymium magnet |
| Enclosure Material | Backcan: Powder-coated formed steel Baffle: PC/ABS, flammability rated UL 94 5VB |
| Grille | White (RAL9003) |
| Dimensions (Dia x H) | 8.1" (203 mm) x 4.6" (114 mm) |
| Net Weight (ea) | 4.65 lbs (2.11 kg) |
| Shipping Weight (Pair) | 18.92 lbs (8.58 kg) |
