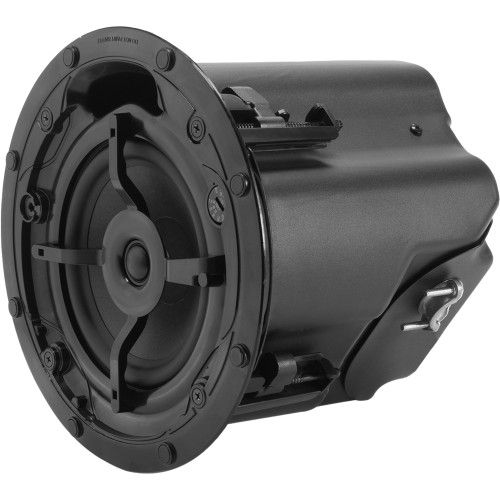

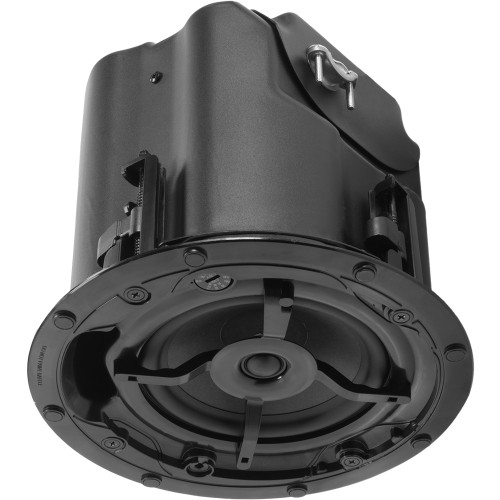

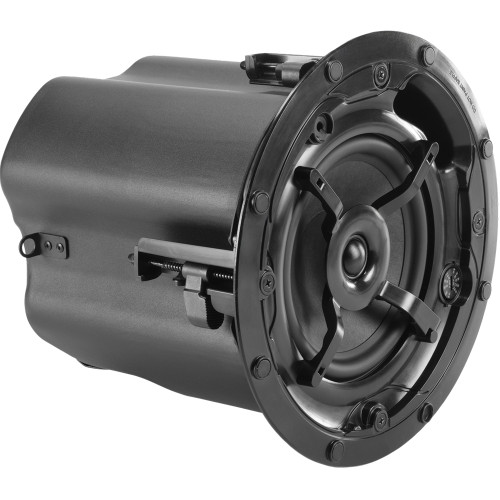

JBL Control 416C/T 6.5-Inch 2-Way Coaxial Ceiling Loudspeakers

The Control 416C/T is a professional-grade 6.5" 2-way coaxial ceiling loudspeaker designed to deliver clear, full-range audio in commercial spaces. Featuring a 165 mm (6.5") woofer and 20 mm (0.75") soft-dome tweeter mounted coaxially, it provides balanced, high-fidelity sound with minimal distortion. Its 120° coverage ensures consistent audio quality across both on- and off-axis listening areas, making it ideal for restaurants, retail stores, offices, educational facilities, hotels, and other public environments.

Part of JBL's Control 400 Series, the 416C/T comes equipped with a pre-attached backcan, C-ring, and tile rails for fast, hassle-free installation. The speaker supports both low-impedance 8Ω direct connection and distributed 70V/100V systems with a 30W multi-tap transformer, offering flexible deployment for a variety of commercial audio setups. With robust power handling, 50W continuous and 200W peak, the Control 416C/T ensures clear, powerful sound for low- to medium-volume applications.

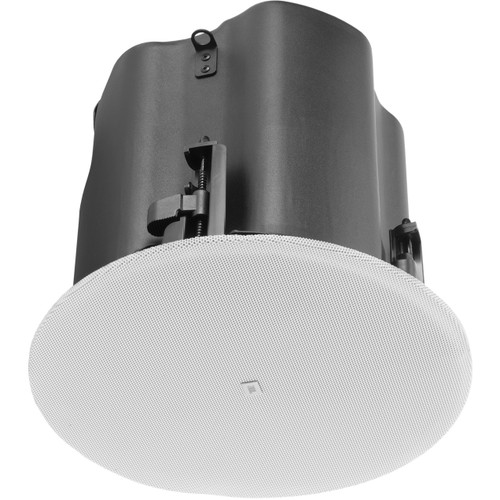

The sleek, bezel-less magnetic grille blends seamlessly into any ceiling decor and can be painted to match the environment, with a safety tether for secure mounting. For applications requiring extended low-frequency performance, the Control 416C/T pairs perfectly with the JBL Control 419CS/T subwoofer. UL 1480A and UL 2043 listings make this speaker a safe, reliable choice for professional installations that demand both style and performance.

Features

Features

6.5" (165 mm) coaxial woofer and 0.75" (20 mm) soft-dome tweeter for clear, full-range sound
120° wide coverage ensures uniform audio distribution throughout the space
High power handling: 50W continuous, 200W peak for low- to medium-volume commercial use
Flexible connectivity: 8Ω low-impedance or 70V/100V distributed systems with 30W multi-tap transformer
Sleek bezel-less magnetic grille, paintable to match decor, with safety tether
Pre-attached backcan, C-ring, and tile rails for quick, easy installation
UL 1480A and UL 2043 certified for safe commercial installation
Compatible with JBL Control 419CS/T subwoofer for enhanced low-frequency performance

Specification

Frequency Range (-10 dB)	61 Hz - 20 kHz
Frequency Response (±3 dB)	84 Hz - 19 kHz
Power Capacity	150W Continuous Program (2 hrs) 75W (300W Peak), Continuous Pink Noise (2 hrs) 50W (200W Peak), Continuous Pink Noise (100 hrs)
Sensitivity	89 dB
Nominal Coverage Angle	120° conical
Directivity Factor (Q)	4.5
Directivity Index (DI)	6.5 dB
Rated Maximum SPL	108 dB continuous pink noise (114 dB peak)
Nominal Impedance	8Ω
Minimum Impedance	6.6Ω at 250 Hz
Transformer Taps	70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W
Recommended Protective High-Pass Filter Frequency	70 Hz (24 dB/oct LR)
Transformer Insertion Loss	0.9 dB @ 3.8W; 0.8 dB @ 7.5W; 0.8 dB @ 15W; 0.9 dB @ 30W
Maximum Input Voltage	22.2V RMS, 44.5V Peak (2hrs at 8Ω Input)
LF Driver	6.5" (165 mm) with paper cone, Polymerized Styrene Butadiene Rubber surround.
HF Driver	0.75" (20 mm) with highly damped treated soft-dome, neodymium magnet assembly, polyimide voice coil, wide dispersion waveguide.
Enclosure Material	Backcan: Powder-coated formed steel Baffle: PC/ABS, flammability rated UL 94 5VB
Grille	White (RAL9003)
Dimensions (Dia x H)	8.1" (203 mm) x 5.7" (143 mm)
Net Weight (ea)	8.27 lbs (3.75 kg)
Shipping Weight (Pair)	27.87 lbs (12.64 kg)
