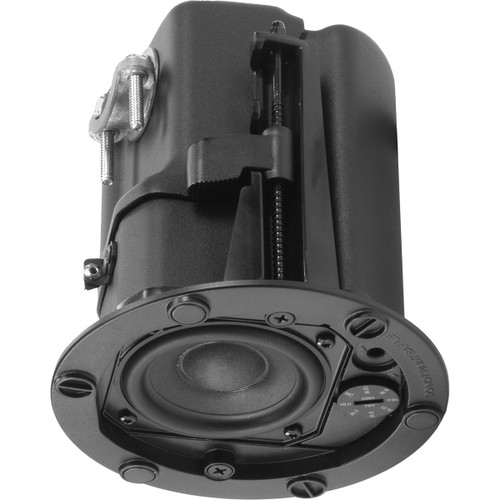

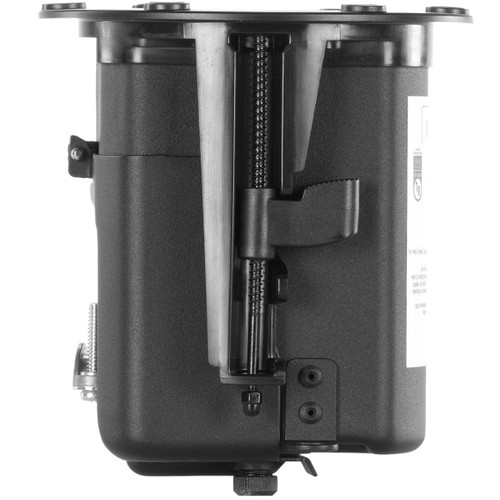

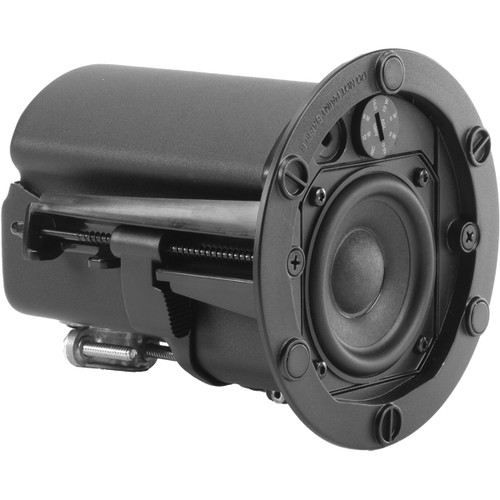

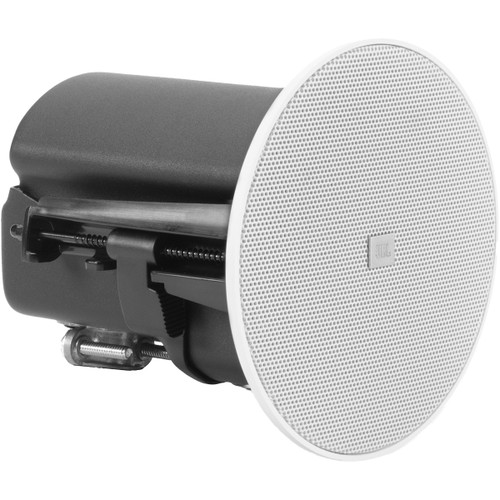

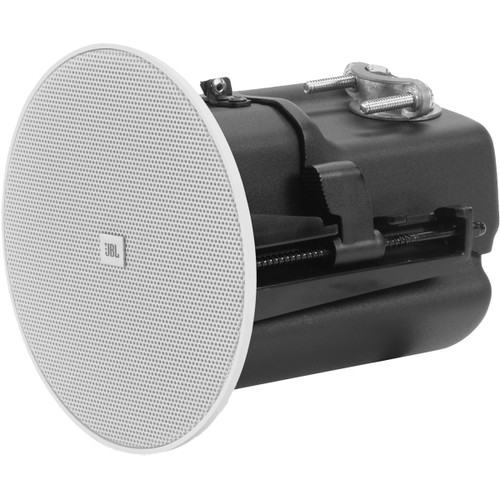

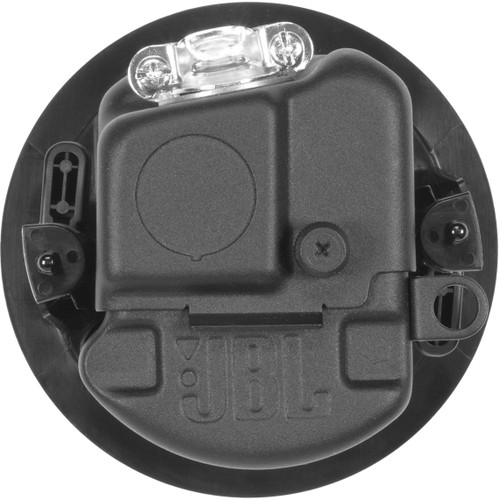

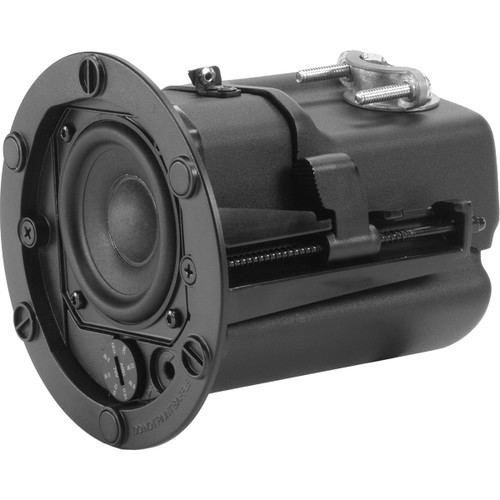

JBL Control 442C/T 2.5-Inch Full-Range Compact Satellite Ceiling Loudspeakers
The Control 442C/T is an ultra-compact pair of 2.5" full-range satellite ceiling loudspeakers designed for professional distributed audio systems. With a 60 mm (2.5") mid/high driver featuring a polypropylene cone and pure butyl rubber surround, it delivers clear, accurate sound with low distortion. Its extremely wide 160° coverage ensures consistent audio performance across the listening area, making it ideal for restaurants, retail spaces, offices, hotels, and educational facilities.
When paired with the Control 440CS/T in-ceiling subwoofer, the 442C/T forms a high-performance subwoofer-satellite system, providing full-range, wide-bandwidth sound while maintaining minimal visual impact. It must be operated with either the subwoofer's built-in passive crossover or an active high-pass filter to protect the speaker from low-frequency damage, ensuring long-term reliability and optimal audio performance.
The sleek bezel-less magnetic grille and integrated backcan allow the speaker to blend seamlessly into any ceiling design. The package includes a grille, integral backcan, and C-ring for quick, professional installation. Optional grilles are available in black (JBL-MTC-442BG) or square white (JBL-MTC-442SG). UL 1480A and UL 2043 certifications guarantee compliance with commercial building safety standards, making the Control 442C/T a versatile, high-quality solution for compact satellite ceiling applications.
- Features
Features
- Pair of 2.5" (60 mm) full-range drivers with polypropylene cone and pure butyl rubber surround
- Ultra-wide 160° coverage pattern for consistent sound across large listening areas
- Lightweight, compact design blends unobtrusively into ceilings
- 16Ω driver and 12W transformer for use with 70V/100V distributed audio systems
- Must be used with a subwoofer (Control 440CS/T) or active/passive high-pass filter for protection
- Bezel-less magnetic grille integrates seamlessly; paintable to match ceiling décor
- Includes integral backcan and C-ring for fast, secure installation
- Optional black (JBL-MTC-442BG) or square white (JBL-MTC-442SG) accessory grilles
- UL 1480A and UL 2043 certified for commercial compliance
- Ideal as satellite speakers in subwoofer-satellite systems for offices, retail, and hospitality environments
- Specification
Frequency Range (-10 dB) 130 Hz - 20 kHz Frequency Response (±3 dB) 178 Hz - 20 kHz Power Capacity 45W Continuous Program (2 hrs.)
22.5W (90W Peak), Continuous Pink Noise (2 hrs.)
15W (60W Peak) Continuous Pink Noise Power (100 hrs.)Sensitivity 86 dB Nominal Coverage Angle 160° conical Directivity (Q) 2.9 Directivity Index (DI) 4.6 dB Rated Maximum SPL 99.5 dB continuous pink noise (105.5 dB peak) Nominal Impedance 16Ω Minimum Impedance 13.3Ω at 570 Hz Transformer Taps 70V: 12W, 6W & 3W
100V: 12W, 6WRecommended Protective High-Pass Filter Frequency 120 Hz (24 dB/oct LR) Transformer Insertion Loss 0.7 dB @ 3W; 0.7 dB @ 6W; 0.7 dB @ 12W Maximum Input Voltage 17.3V RMS, 34V peak (2 hrs at 16Ω input) Full-Range Driver 60 mm (2.5") with paper cone, Nitrile-butadiene rubber surround, CCAW coil, vented Polyimide former Enclosure Material Backcan: Powder-coated formed steel
Baffle: PC/ABS, flammability rated UL 94 5VBGrille White (RAL9003) Dimensions (Dia x H) 5.2" (131 mm) x 5.4" (138 mm) Net Weight (ea) 2.43 lbs (1.1 kg) Shipping Weight (Pair) 7.1 lbs (3.22 kg) - Documents
Documents
- In The Box
In The Box
- (2) JBL Control 442C/T Ceiling Loudspeakers
- (4) 2-Pin Block Connectors
- (2) Cable Strain Reliefs
- (2) White Paintable Round Grilles
- (2) C-Rings
- (4) Tile Rails
- (2) Seal Covers
- (4) Rubber Boots
- (1) Cutout Template
