JBL Control 447C/T 6.5-inch 2-Way Coaxial Ceiling Loudspeakers with RBI

Home /
Commercial Sound Equipment /
Commercial Audio Speakers /
In-Ceiling & In-Wall Speakers /
70 Volt In Ceiling Speakers /
JBL Control 447C/T 6.5" 2-Way Coaxial Ceiling Loudspeakers with RBI - Pair

Description

Details

JBL Control 447C/T 6.5-Inch 2-Way Coaxial Ceiling Loudspeakers

The Control 447C/T is a high-performance 6.5" 2-way coaxial in-ceiling loudspeaker sold as a pair, designed for professional installations requiring exceptional clarity, wide frequency response, and highly consistent coverage. Part of JBL's Control 400 Premium Coverage Series, the 447C/T features Radiation Boundary Integrator (RBI) technology, which seamlessly integrates the coaxial woofer and tweeter outputs for smooth, uniform dispersion. This ensures consistent sound throughout the listening area while reducing the number of speakers required for full coverage.

Equipped with a 165 mm (6.5") treated paper woofer and a 25 mm (1") soft-dome tweeter, each speaker delivers warm, full-bodied bass and crisp, detailed highs. The high-efficiency copper-clad aluminum voice coils and neodymium magnet assembly provide low distortion, high sensitivity, and enhanced power handling. The 447C/T pair supports both 8Ω direct operation and 70V/100V distributed systems via a 60W multi-tap transformer, engineered for low saturation and low distortion performance.

The bezel-less magnetic grilles blend seamlessly into modern ceilings, and the integrated backcans, C-rings, and paintable grilles simplify installation and customization. For applications requiring extended low-frequency performance, the 447C/T pair pairs perfectly with the Control 440CS/T subwoofer. UL 1480A and UL 2043 listings ensure the speakers meet commercial safety standards, making them a reliable solution for retail, hospitality, educational, and corporate audio systems.

Features

Features

Pair of 6.5" (165 mm) 2-way coaxial ceiling speakers
JBL Radiation Boundary Integrator (RBI) for uniform wide coverage
Extended 55 Hz - 20 kHz frequency response for clear, balanced audio
75W continuous (300W peak) power handling for high-output environments
60W multi-tap transformer for 70V/100V distributed systems
Coaxial woofer and 1" soft-dome tweeter with neodymium magnet for crisp highs
8 Ω direct operation with parallel capability for flexible system design

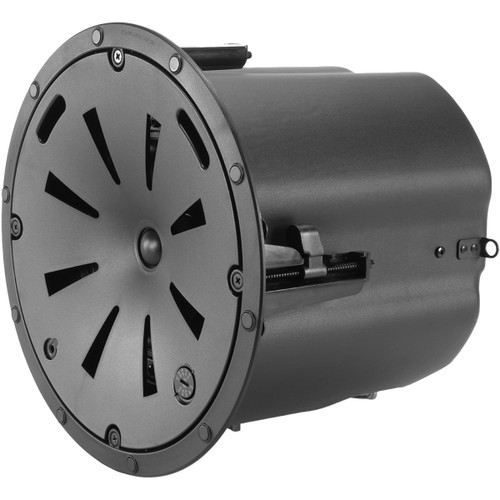

Sleek bezel-less magnetic grilles, paintable to match ceiling decor

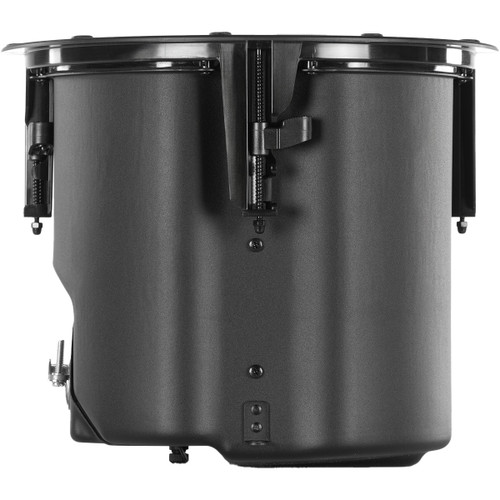

Integrated backcans and C-ring support plates for fast, secure installation
Optional accessory grilles: black (JBL-MTC-447BG) or square white (JBL-MTC-447SG)
UL 1480A and UL 2043 certified for commercial safety compliance

Specification

Frequency Range (-10 dB)	55 Hz - 20 kHz
Frequency Response (±3 dB)	74 Hz - 20 kHz
Power Capacity	224W Continuous Program (2 hrs.) 112W (448W Peak), Continuous Pink Noise (2 hrs.) 75W (300W Peak) Continuous Pink Noise Power (100 hrs.)
Sensitivity	91 dB
Nominal Coverage Angle	120° conical
Directivity (Q)	4.5
Directivity Index (DI)	6.5 dB
Rated Maximum SPL	111.5 dB continuous pink noise (117.5 dB peak)
Nominal Impedance	8Ω
Minimum Impedance	7.1Ω at 210 Hz
Transformer Taps	70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Recommended Protective High-Pass Filter Frequency	60 Hz (24 dB/oct LR)
Transformer Insertion Loss	0.6 dB @ 7.5W; 0.8 dB @ 15W; 0.9 dB @ 30W; 0.9 dB @ 60W
Maximum Input Voltage	28.2V RMS (2 hrs), 56.4V peak (at 8Ω input)
LF Driver	165 mm (6.5") treated paper cone, high-performance magnet, 38 mm (1.5") SV voice coil on aluminum voice coil former.
HF Driver	25 mm (1") cloth soft-dome, neodymium magnet assembly, CCAW wire on Polyimide voice coil former.
Enclosure Material	Backcan: Powder-coated formed steel Baffle: PC/ABS, flammability rated UL 94 5VB
Grille	White (RAL9003)
Dimensions (Dia x H)	12.4" (316 mm) x 10.4" (264 mm)
Net Weight (ea)	12.52 lbs (5.68 kg)
Shipping Weight (Pair)	38.07 lbs (17.27 kg)
