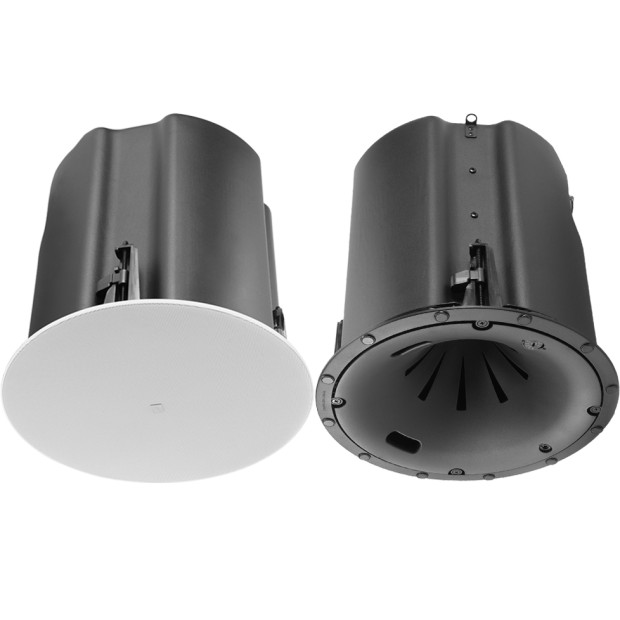

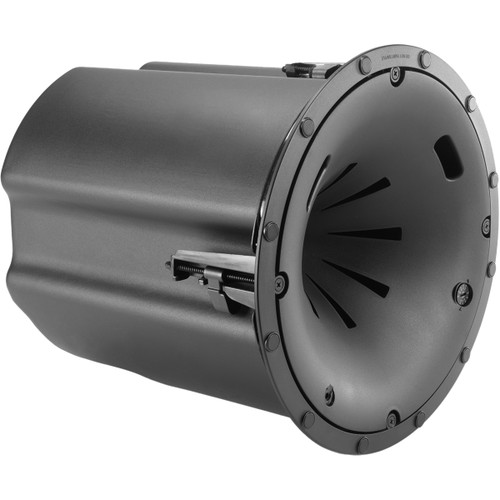

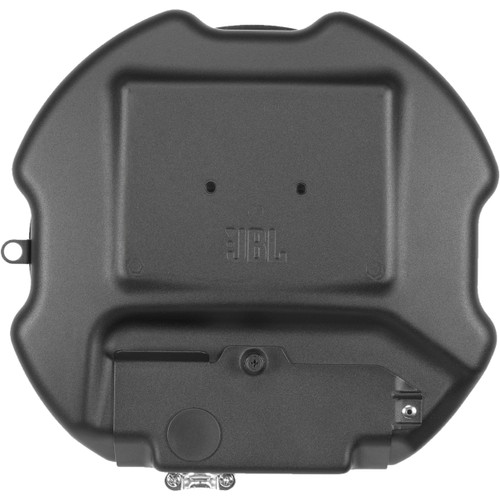

JBL Control 447HC 6.5" 2-Way Coaxial Ceiling Loudspeakers with RBI for High Ceilings - Pair

Description

Details

JBL Control 447HC 6.5-Inch 2-Way Coaxial Ceiling Loudspeakers for High Ceilings

The Control 447HC is a professional 6.5" 2-way coaxial in-ceiling loudspeaker sold as a pair, engineered for high-ceiling and highly reverberant spaces where focused, consistent coverage is essential. Part of JBL's Control 400 Premium Coverage Series, the 447HC features a narrow 85° coverage pattern and Radiation Boundary Integrator (RBI) technology, seamlessly integrating the coaxial woofer and tweeter outputs for uniform sound dispersion. Its sonic character matches the Control 447C/T, allowing both models to be intermixed in systems for flexible design.

Each speaker is equipped with a 165 mm (6.5") treated paper woofer and a 25 mm (1") soft-dome tweeter, providing warm, full-bodied lows and crisp, detailed highs. The high-efficiency copper-clad aluminum voice coils and neodymium magnet assembly ensure low distortion, high sensitivity, and enhanced power handling. The 447HC pair supports 8Ω direct operation and 70V/100V distributed audio systems via a 60W multi-tap transformer optimized for low saturation and low distortion performance.

Aesthetically, the bezel-less magnetic grilles blend cleanly into ceilings, while integrated backcans, C-ring support plates, and paintable grilles allow quick, professional installation. For installations requiring extended low-frequency support, the 447HC pairs perfectly with the Control 440CS/T subwoofer. UL 1480A and UL 2043 certifications ensure safety compliance in commercial and professional environments, making the Control 447HC an ideal solution for focused high-ceiling audio applications.

Features

Features

Pair of 6.5" (165 mm) 2-way coaxial ceiling speakers
Narrow 85° coverage pattern with JBL Radiation Boundary Integrator (RBI)
Designed for high-ceiling and highly reverberant spaces
Extended 55 Hz - 20 kHz frequency response for balanced audio
75W continuous (300W peak) power handling for professional installations
60W multi-tap transformer for 70V/100V distributed systems
Coaxial woofer and 1" soft-dome tweeter with neodymium magnet for crisp highs
8 Ω direct operation with parallel capability for flexible system design
Sleek bezel-less magnetic grilles, paintable to match ceiling decor
Integrated backcans and C-ring support plates for fast, secure installation
Optional accessory grilles: black (JBL-MTC-440BG) or square white (JBL-MTC-440SG)
UL 1480A and UL 2043 certified for commercial compliance

Specification

Frequency Range (-10 dB)	55 Hz - 20 kHz
Frequency Response (±3 dB)	72 Hz - 14 kHz
Power Capacity	224W Continuous Program (2 hrs.) 112W (448W Peak), Continuous Pink Noise (2 hrs.) 75W (300W Peak) Continuous Pink Noise Power (100 hrs.)
Sensitivity	93 dB
Nominal Coverage Angle	85° conical
Directivity (Q)	8.9
Directivity Index (DI)	9.5 dB
Rated Maximum SPL	113.5 dB continuous pink noise (119.5 dB peak)
Nominal Impedance	8Ω
Minimum Impedance	6.7Ω at 800 Hz
Transformer Taps	70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Recommended Protective High-Pass Filter Frequency	60 Hz (24 dB/oct LR)
Transformer Insertion Loss	0.6 dB @ 7.5W; 0.8 dB @ 15W; 0.9 dB @ 30W; 0.9 dB @ 60W
Maximum Input Voltage	29.7V RMS (2 hrs), 59.5V peak (at 8Ω input)
LF Driver	165 mm (6.5") treated paper cone, high-performance magnet, 38 mm (1.5") SV voice coil on aluminum voice coil former.
HF Driver	25 mm (1") cloth soft-dome, neodymium magnet assembly, CCAW wire on Polyimide voice coil former.
Enclosure Material	Backcan: Powder-coated formed steel Baffle: PC/ABS, flammability rated UL 94 5VB
Grille	White (RAL9003)
Dimensions (Dia x H)	13.5" (342 mm) x 13.8" (351 mm)
Net Weight (ea)	16.16 lbs (7.33 kg)
Shipping Weight (Pair)	49.23 lbs (22.33 kg)
