JBL Control 447LP 6.5-inch 2-Way Low Profile Coaxial Ceiling Loudspeakers with RBI

Home /
Commercial Sound Equipment /
Commercial Audio Speakers /
In-Ceiling & In-Wall Speakers /
70 Volt In Ceiling Speakers /
JBL Control 447LP 6.5" 2-Way Low Profile Coaxial Ceiling Loudspeakers with RBI - Pair

Description

Details

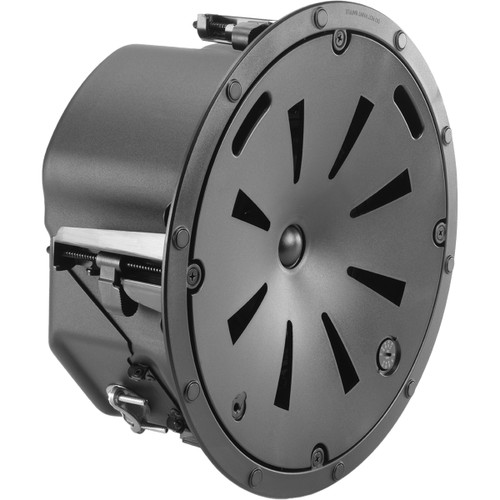

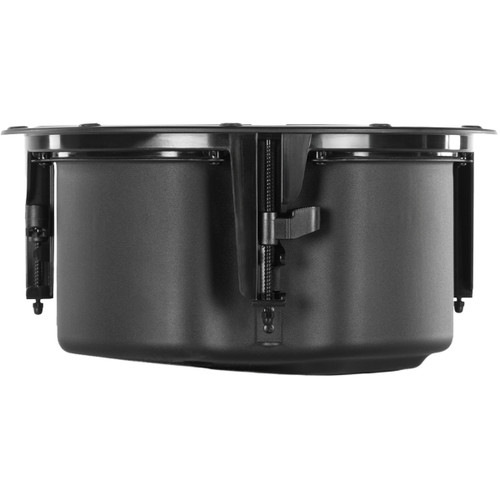

JBL Control 447LP 6.5" 2-Way Low Profile Coaxial Ceiling Loudspeakers

The Control 447LP is a high-performance 6.5" 2-way low-profile coaxial in-ceiling loudspeaker sold as a pair, designed for locations with limited ceiling depth. Part of JBL's Control 400 Premium Coverage Series, the 447LP shares the same sonic character as the 447C/T, allowing both models to be intermixed seamlessly in installations. Its Radiation Boundary Integrator (RBI) technology ensures uniform sound dispersion across the listening area, delivering consistent, full-range audio even in compact mounting environments.

Each speaker features a 165 mm (6.5") treated paper woofer and a 25 mm (1") soft-dome tweeter, providing warm, full-bodied bass and crisp, detailed highs. The copper-clad aluminum voice coils and neodymium magnet assembly optimize sensitivity, low distortion, and enhanced power handling. The 447LP pair supports 8Ω direct operation and 70V/100V distributed systems through a 60W multi-tap transformer engineered for low-saturation, low-distortion performance.

The bezel-less magnetic grilles blend cleanly into ceilings, while the integrated backcans, C-ring support plates, and paintable grilles simplify professional installation. For applications requiring extended low-frequency support, the 447LP pairs perfectly with the Control 440CS/T subwoofer. UL 1480A and UL 2043 listings ensure the speakers meet commercial safety standards, making the Control 447LP an ideal solution for shallow-ceiling professional audio installations.

Features

Features

Pair of 6.5" (165 mm) low-profile 2-way coaxial ceiling speakers
JBL Radiation Boundary Integrator (RBI) for consistent wide coverage
Slim 142 mm (5.6") depth ideal for restricted or shallow mounting spaces
Extended 65 Hz - 20 kHz frequency response for balanced audio
75W continuous (300W peak) power handling for professional installations
60W multi-tap transformer for 70V/100V distributed systems
Coaxial woofer and 1" soft-dome tweeter with neodymium magnet for crisp highs
8Ω direct operation with parallel capability for flexible system design
Sleek bezel-less magnetic grilles, paintable to match ceiling decor
Integrated backcans and C-ring support plates for fast, secure installation
Optional accessory grilles: black (JBL-MTC-447BG) or square white (JBL-MTC-447SG)
UL 1480A and UL 2043 certified for commercial safety compliance

Specification

Frequency Range (-10 dB)	65 Hz - 20 kHz
Frequency Response (±3 dB)	97 Hz - 20 kHz
Power Capacity	224W Continuous Program (2 hrs.) 112W (448W Peak), Continuous Pink Noise (2 hrs.) 75W (300W Peak) Continuous Pink Noise Power (100 hrs.)
Sensitivity	91 dB
Nominal Coverage Angle	120° conical
Directivity (Q)	4.5
Directivity Index (DI)	6.5 dB
Rated Maximum SPL	111.5 dB continuous pink noise (117.5 dB peak)
Nominal Impedance	8Ω
Minimum Impedance	7.2Ω at 210 Hz
Transformer Taps	70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Recommended Protective High-Pass Filter Frequency	60 Hz (24 dB/oct LR)
Transformer Insertion Loss	0.6 dB @ 7.5W; 0.8 dB @ 15W; 0.9 dB @ 30W; 0.9 dB @ 60W
Maximum Input Voltage	28.4V RMS (2 hrs), 56.8V peak (at 8Ω input)
LF Driver	165 mm (6.5") treated paper cone, high-performance magnet, 38 mm (1.5") SV voice coil on aluminum voice coil former.
HF Driver	25 mm (1") cloth soft-dome, neodymium magnet assembly, CCAW wire on Polyimide voice coil former.
Enclosure Material	Backcan: Powder-coated formed steel Baffle: PC/ABS, flammability rated UL 94 5VB
Grille	White (RAL9003)
Dimensions (Dia x H)	12.4" (316 mm) x 6.1" (154 mm)
Net Weight (ea)	11.24 lbs (5.1 kg)
Shipping Weight (Pair)	34.88 lbs (15.82 kg)
