- Description
Details

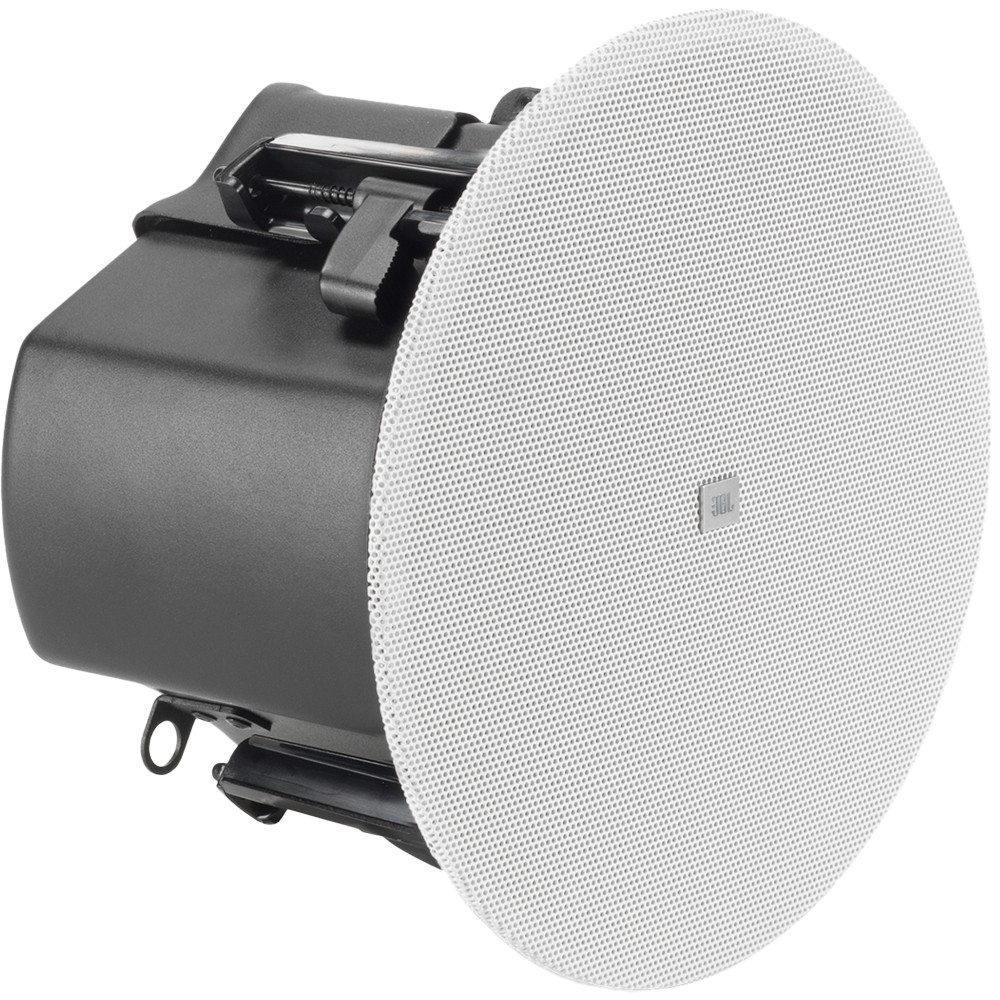

JBL Control 412C/T 3-Inch Full-Range Ceiling Loudspeakers

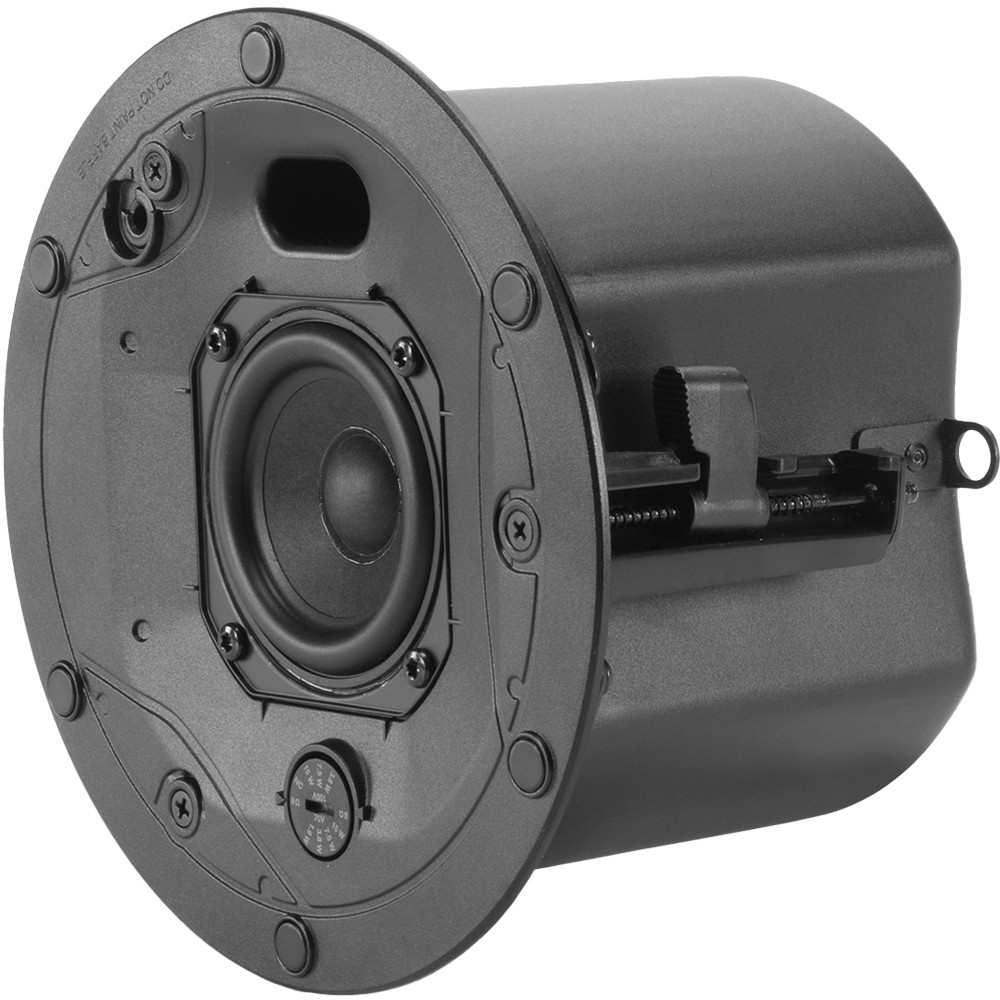

The Control 412C/T 3" compact full-range ceiling loudspeakers deliver premium sound quality in a sleek, unobtrusive design. Part of the Control 400 Standard Coverage Series, these speakers feature a 76 mm (3") wide-bandwidth driver mounted in a ported baffle with a pre-attached backcan for quick and secure installation. Their wide 160° coverage ensures consistent, high-quality audio both on- and off-axis, making them perfect for retail stores, cafes, airports, educational facilities, and other commercial spaces.
With a frequency response of 68 Hz - 17 kHz and high power handling (20W nominal, 80W peak at 8Ω), the Control 412C/T provides low distortion and clear, enveloping sound. The integrated 15W multi-tap transformer allows flexible installation in distributed 70V/100V systems, while the 8Ω direct input supports up to two speakers in parallel on a 4Ω amplifier channel.
The speakers feature a full-face bezel-less grille that blends elegantly into any room design and is magnetic for easy removal, supplemented with a safety tether. Paintable white grilles are included, with optional black and square grilles available. UL 1480A and UL 2043 listings ensure compliance with commercial standards. The Control 412C/T pairs seamlessly with the Control 419CS/T subwoofer for enhanced low-frequency performance.
- Features
Features
- Pair of 3" full-range ceiling loudspeakers
- Wide 160° coverage for consistent on- and off-axis sound
- Frequency range: 68 Hz - 17 kHz, high-fidelity audio
- High power handling: 20W nominal, 80W peak at 8Ω
- 15W multi-tap transformer for 70V/100V distributed systems
- Stylish bezel-less, magnetic, and paintable grilles
- Pre-attached backcan, C-ring, and tile rails for fast installation
- Ideal for retail, hospitality, educational, and commercial spaces
- UL 1480A and UL 2043 listed for safety compliance
- Pairs with Control 419CS/T subwoofer for enhanced bass
- Specification
Frequency Range (-10 dB) 68 Hz - 17 kHz Frequency Response (±3 dB) 85 Hz - 16 kHz Power Capacity 60W Continuous Program (2 hrs)
30W (120W Peak), Continuous Pink Noise (2 hrs)
20W (80W Peak), Continuous Pink Noise (100 hrs)Sensitivity 84 dB Nominal Coverage Angle 160° conical Directivity Factor (Q) 2.9 Directivity Index (DI) 4.6 dB Rated Maximum SPL 99 dB continuous pink noise (105 dB peak) Nominal Impedance 8Ω Minimum Impedance 7.1Ω at 500 Hz Transformer Taps 70V: 15W, 7.5W, 3.8W & 1.9W
100V: 15W, 7.5W, 3.8WRecommended Protective High-Pass Filter Frequency 80 Hz (24 dB/oct LR) Transformer Insertion Loss 0.7 dB @ 1.9W; 0.7 dB @ 3.8W; 0.8 dB @ 7.5W; 0.8 dB @ 15W Maximum Input Voltage 14V RMS, 28V Peak (2hrs at 8Ω Input) Full-Range Driver 3" (76 mm) full range driver with paper cone, Polymerized Styrene Butadiene Rubber surround, high-temperature voice coil, copper coupling ring for low distortion and HF extension Enclosure Material Backcan: Powder-coated formed steel
Baffle: PC/ABS, flammability rated UL 94 5VBGrille White (RAL9003) Dimensions (Dia x H) 5.4" (134 mm) x 5.7" (143 mm) Net Weight (ea) 3.86 lbs (1.75 kg) Shipping Weight (Pair) 17.46 lbs (7.92 kg) - Documents
Documents
- In The Box
In The Box
- (2) JBL Control 412C/T Ceiling Loudspeakers
- (2) 2-Pin Block Connectors
- (2) Cable Strain Reliefs
- (2) White Paintable Round Grilles
- (2) C-Rings
- (4) Tile Rails
- (2) Seal Covers
- (4) Rubber Boots
- (1) Cutout Template
